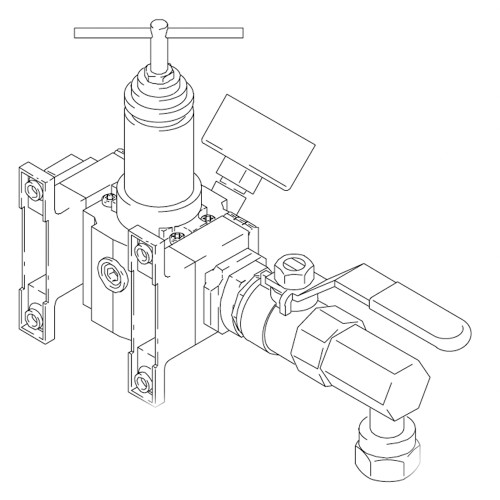

GRACO 238980 - Air Regulator Kit for President & Monark Cart Mount Airless Pumps, 3/8 NPT

Air Regulator Kit, for President® and Monark® cart mount airless pumps

Specifications

• Thread: 3/8 npt
• Max Working Pressure: 250 psi (1.7 MPa, 17.2 bar)
• Manual Reference: 308686
• Maximum Air Input Pressure: 250 psi (1.7 MPa, 17.2 bar)
• Series: Series A

Compatible Equipment

• CST 231940
• CST 231941
• CST 231942
• SST 231949
• SST 232025
• President® pumps

Related Parts

• 238939 - Air Filter/Regulator Kit for President & Monark Cart Mount Air-Assisted Pumps
• 239956 - Air Filter/Regulator Kit for President & Monark Wall Mount Air-Assisted Pumps
• 239957 - Air Regulator Kit for President & Monark Wall Mount Airless Pumps, 3/8 NPT
• 239976 - Air Regulator Kit for Monark Light Duty Cart Mount Airless Pumps, 3/8 NPSM(F)
• 240446 - Air Regulator Kit for Monark Pail Mount Air-Assisted Pumps, 250 PSI (1.7 MPa
• 240231 - Air Regulator Kit, for Monark® Pail Mount Airless Pumps
• 239957 - Air Control Kit, Series A

Kit Contents

• 113911 - GAUGE, air (Qty: 1)
• 113763 - CLAMP, wall mount (Qty: 2)
• 113764 - AIR REGULATOR; 3/8 npt(f) inlet and outlet; 5-150 psi (0.3-1 MPa, 0.3-10 bar) pressure range (Qty: 1)
• 113630 - ELBOW, 45°; 1/8 npt (m x f) (Qty: 1)
• 113333 - BLEED VALVE, red-handled; 3/8 npt (m x f) (Qty: 1)
• 113767 - ADAPTER, pipe; 3/8 npt(f) (Qty: 2)
• 155494 - UNION, tee; 3/8 npt(m) x 3/8 npt(f) (Qty: 1)

This is reference number 19 in the parts list. The part appears in multiple package configurations. Complete specifications would be found in manual 308686. Part of Series A. All related parts have the same maximum air input pressure rating of 250 psi. Repair Kit 247568, containing 2 o-rings, is available for purchase separately. Order 1 kit per bracket.

Reference Manuals

• 308635 (Page 17) Cart-Mounted Airless Packages
• 308686 (Page 1) High Volume Air Control Kits
