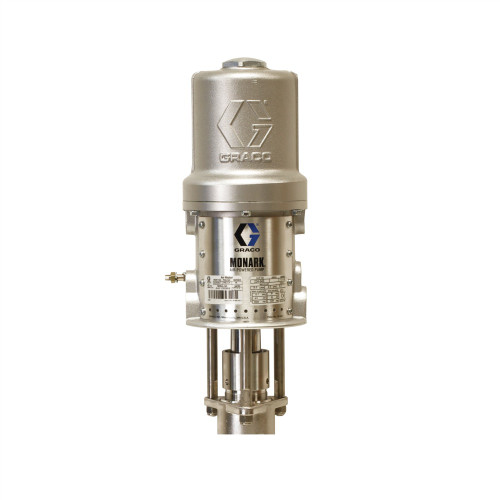

GRACO 239327 - Monark 15:1 Pneumatic 2-Ball Piston Pump, CS, Stubby Length, UHMWPE/Leather Packings, 2700 PSI, II 1/2 G Ex h IIB T3 Ga/Gb

Monark 15:1 pneumatic 2-ball piston pump designed for handling solventborne and waterborne fluids, high solids plural component coatings, resins, stains, lacquers and varnishes, cleaning fluids, acid-catalyzed materials, and high solid coatings. Features stubby length design with UHMWPE/Leather seals for reliable performance.

Specifications

• Ratio: 15:1
• Flow Rate: 44 cc output per cycle
• Length: stubby
• Thread: II 1/2 G Ex h IIB T3 Ga/Gb
• Max Working Pressure: 2700 PSI maximum working pressure (186.18 bar)
• Material: UHMWPE/Leather seals
• Pump Outlet Size: 3/8 NPT(F)
• Maximum Input Pressure: 100 PSI (7.0 bar)
• Air Input Pressure: 100 PSI (0.7 MPa, 7 bar) Maximum Air Input Pressure
• Series: Series A
• Certification: CML 24ATEX6021X
• Pump Type: Monark
• Size: Stubby

Features

• 15:1 pump ratio for high pressure applications
• Stubby length design for compact installations
• UHMWPE/Leather seal construction for durability
• 44 cc output per cycle
• 2700 PSI maximum working pressure
• 3/8 NPT female pump outlet

Applications

• Solventborne and waterborne fluids
• High solids, plural component coatings
• Resins
• Stains, lacquers and varnishes
• Cleaning fluids
• Acid-catalyzed materials

Compatible Equipment

• HYDRA-SPRAY President and Monark Pumps

Related Parts

• 218763 - Monark 1.5:1 Pneumatic 2-Ball Piston Pump, SS, Stubby Length
• 223186 - Leather Stubby Length Cs Monark 2:1 Pneumatic 2-Ball Piston Pump
• 224350 - Stainless Uhmwpe/PTFE Packings Drum Length SS Monark 5:1 Pneumatic 2-Ball Piston Pump
• 224343 - Monark 5:1 Pneumatic 2-Ball Piston Pump, SS, UHMWPE/PTFE Packings
• 224345 - Monark 5:1 Pneumatic 2-Ball Piston Pump, SST, UHMWPE/Neoprene Packings
• 218956 - Carbon Steel Monark 5:1 Pneumatic 2-Ball Piston Pump, 35 Bar (3.5 MPa
• 223844 - 15:1 Ratio Monark Pump, Series A, 2700 PSI max fluid working pressure, 180 PSI max air input pressure
• 223596 - Leather Monark 23:1 Pneumatic 2-Ball Piston Pump, 3450 PSI (238
• 237958 - Uhmwpe/Leather Packings Stubby Length Stainless Monark 23:1 Pneumatic 2-Ball Piston
• 221075 - Stainless Drum Length Cs President 30:1 Pneumatic 2-Ball Piston Pump

Kit Contents

• 101946 - PIN, cotter; stainless steel; 0.12" (3.2 mm) x 1.5" (38 mm)
• 101566 - NUT, lock; 3/8 -16
• 154771 - O-RING; buna-N
• 164722 - ROD, tie; carbon steel; 4.375 in. (111 mm) shoulder to shoulder
• 215363 - AIR MOTOR, See 307043 for parts
• 223587 - DISPLACEMENT PUMP ASSY; See pages 19

Part of the Monark Pneumatic 2-Ball Piston Pump family. Manual part numbers: Pump manual assembly 308739, Lever manual 308681, Motor manual 307043. For airless and air-assisted spraying of finishing materials. Has explosion-proof certification markings. Keep these spare parts on hand to reduce down time
