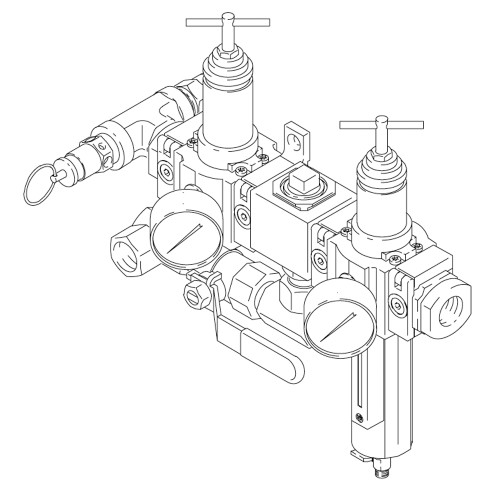

GRACO 239956 - Air Filter/Regulator Kit for President & Monark Wall Mount Air-Assisted Pumps
Air Filter/Regulator Kit, for President® and Monark® wall mount air-assisted pumps
Specifications
- Max Working Pressure: 250 psi (1.7 MPa, 17.2 bar)
- Maximum Air Input Pressure: 250 psi (1.7 MPa, 17.2 bar)
Compatible Equipment
- President® wall mount air-assisted pumps
- Air-assisted spray systems
- Gun air filter/regulator applications
Related Parts
- 238939 - Air Filter/Regulator Kit for President & Monark Cart Mount Air-Assisted Pumps
- 238980 - Air Regulator Kit for President & Monark Cart Mount Airless Pumps, 3/8 NPT
- 239957 - Air Regulator Kit for President & Monark Wall Mount Airless Pumps, 3/8 NPT
- 239976 - Air Regulator Kit for Monark Light Duty Cart Mount Airless Pumps, 3/8 NPSM(F)
- 240446 - Air Regulator Kit for Monark Pail Mount Air-Assisted Pumps, 250 PSI (1.7 MPa
- 240231 - Air Regulator Kit, for Monark® Pail Mount Airless Pumps
Part of Series A. All related parts in the list have the same maximum air input pressure rating of 250 psi. This kit includes a gun air regulator (8) that adjusts air pressure to an air-assisted spray gun. Some models include a filter to remove harmful dirt and moisture from the compressed air supply. Also includes an air manifold (7) that provides ports for connecting lines to air-powered accessories. Part of Air-Assisted Kits family (238939, 239956, 239975, and 240446). Used with gun air filter/regulator (8) to control air pressure to the gun. Manual recommends spraying test patterns before finished work and refers to separate gun manual for detailed spraying technique information.
Reference Manuals
- 308686 (Page 1) High Volume Air Control Kits
- 308757 (Page 20) Wall Mount Air-Assisted Packages.
- 308758 (Page 17) Wall Mount Electrostatic Air-Assisted Pkgs. (ATEX)
