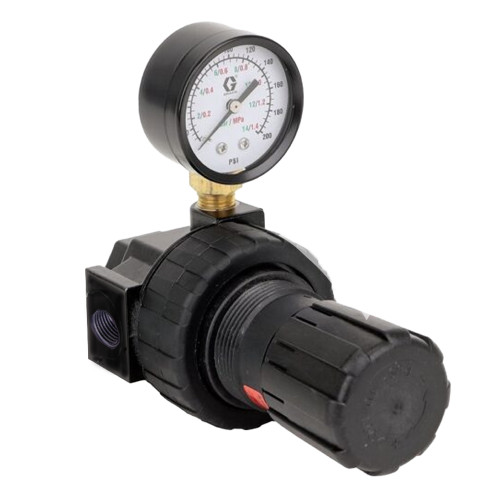

GRACO 244844 - Air Regulator to Control Pump Speed & Pressure, 1/2" NPT, 0-200 PSI Gauge
Specifications
- Thread: 1/2 inch npt
- Max Working Pressure: 300 psi (21 bar, 2.1 MPa) maximum working pressure
- Material: Nitrile Rubber
- Gauge: 0-200 psi
- Max Scfm: 90 (2.5)
- Handle Type: Knob
Compatible Equipment
- GRACO pumps requiring air regulation for speed and pressure control
Related Parts
- 109075 - Air regulator, 3/8 inch npt, 300 psi maximum working pressure
- 109075 - Air Regulator, 3/8" NPT(F) Inlet / Outlet w/ Gauge
- 224512 - Air Regulator, 0-125 psi, w/ Gauge
- 224024 - Low-Volume Air Regulator Assembly, 3/8" NPT
- 203716 - Zinc GRACO 203716 – Air Pressure Regulator Assembly, 1/2" NPT, 1/2 NPT
- 202156 - Zinc Air Pressure Regulator w/ Gauge, 1/2 x 3/8 Bushing, 0-250 PSI (0-17.2 Bar
- 202858 - Air Regulator w/ Gauge 0-200 psi, 1/2"
- 248829 - Air Feed Pump Reg, 0-250 PSI (0-17.2 Bar, 0-1.72 MPa)
Kit Contents
- 104266 - 1/2 in. AIR REGULATOR
- 100721 - PLUG, pipe, 1/4 npt
- 100960 - GAUGE, 0-200 psi (0-14 bar)
Install an air regulator (G) to control pump speed and pressure. To order a 300 psi (21 bar, 2.1 MPa) maximum working pressure air regulator. This is a regulator assembly part that belongs to bare regulator part 104266. It shares the same assembly with multiple other part numbers. Complete air regulator assembly with gauge and pipe plug. Part of a family of air regulator models with different inlet/outlet configurations.
Reference Manuals
- 307883 (Page 7) Fire Ball Pumps
- 308167 (Page 2) Low Volume Air Regulators
- 309350 (Page 2) Bulk Grease Transfer Packages
- 309353 (Page 2) Air-Operated Double Diaphragm Bulk Transfer Packages
