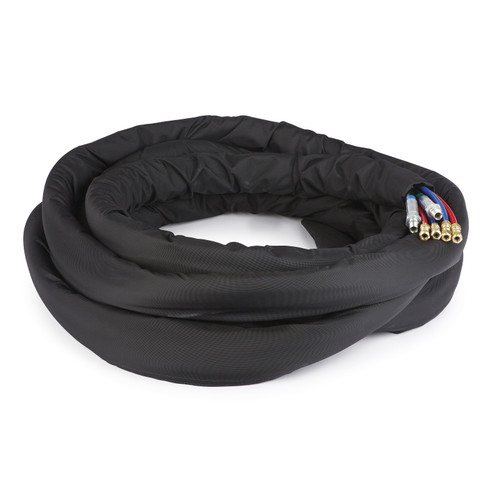

GRACO 248121 - Water Heated Hose, 7250 PSI, 3/8" x 50 ft

Water jacketed heated hose designed for high-pressure applications up to 7250 PSI, featuring dual hose construction with 3/8 inch ID and 17.4 mm (3/4 inch) OD for superior heat distribution and material flow in demanding spray finishing operations.

Specifications

• Outside Diameter: 17.4 mm (3/4 inch)
• Inside Diameter: 3/8 inch
• Length: 50 ft
• Thread: Thread A: 3/8 npsm(F), Thread B: 1/4 npsm(F)
• Max Working Pressure: 7250 PSI (500 bar, 50 MPa)
• Material: Water jacketed construction
• Construction: Dual hose design
• Temperature Control: Water jacketed for heat distribution
• Hose Diameter: A = 3/8 (9.53), B = 1/4 (6.35)
• Series: D
• A Material Hose Diameter: 3/8 in. (9.53 mm)
• A Material Fitting Ends: 3/8 npsm
• B Material Hose Diameter: 1/4 in. (6.35 mm)
• B Material Fitting Ends: 1/4 npsm

Features

• Water jacketed construction for superior temperature control
• High pressure rating up to 7250 PSI
• Dual hose design
• 3/8 inch ID for optimal material flow
• Durable construction for industrial applications

Applications

• High-pressure spray finishing
• Temperature-controlled material application
• Industrial coating operations
• Professional spray systems requiring heated material delivery

Compatible Equipment

• XP spray systems
• XM spray systems
• High-pressure heated material application equipment

Related Parts

• 248118 - Water Heated Hose, 7250 PSI, 1/2", 50 ft (15 m)
• 248119 - Water Heated Hose, 7400 PSI, 3/8" x 50 ft
• 248120 - Water Heated Hose, 7250 PSI, 1/2", 50 ft (15 m)
• 24M439 - Hose, Heated, Dual, 1/2X1/4, 7250, 1/2", 7250 PSI

Part of the water jacketed heated hose family designed for use with XP or XM systems, featuring dual hose construction for enhanced performance in high-pressure applications. This is a dual hose assembly with two different hose diameters - hose A is 3/8 inch and hose B is 1/4 inch. Has CE approval marking. This is a dual material hose assembly with different diameter hoses - 'A' material hose is 3/8 inch and 'B' material hose is 1/4 inch. Has CE and Ex II 2 G approvals.

Reference Manuals

• 340146 (Page 7) XM Plural-Component Sprayers
• 3J0679EN (Page 13) ENEU
• 3J0679ENEU (Page 13)
• 313259 (Page 6) Hopper or Hose Heat Circulation Kit
• 3A5313 (Page 4) Xtreme-Wrap Water Heated Hose, Parts (English)
