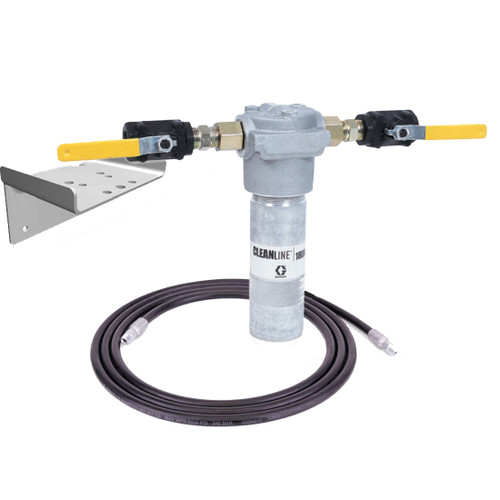

GRACO 248417 - 1800 PSI Wall Mount Cleanline Filter Assembly

1800 psi wall mount CleanLine filter assembly designed for high-pressure fluid filtration applications. Features 99.9% filtration efficiency at 10 microns with cartridge filter system and high pressure housing. Compatible with anti-freeze mixtures and suitable for use with Fire-Ball 425 10:1 or lower ratio oil pumps.

Specifications

• Max Working Pressure: 1800 psi (124 bar)
• Material: aluminum, filter media
• Filtration Efficiency: 99.9% at 10 microns
• Outlet: 3/4 - 14 npt
• Weight: 7 lb (3.18 kg)
• Compatible Pump Ratio: Fire-Ball 425 10:1 or lower

Features

• 99.9% filtration efficiency at 10 microns
• Cartridge filter system with high pressure housing
• Compatible with anti-freeze mixtures
• Wall mount design
• High pressure rating up to 1800 psi

Applications

• Car Dealerships
• Fleets
• Mining and Construction
• Fast Lube
• In Plant
• Municipal

Compatible Equipment

• Fire-Ball 425 10:1 or lower ratio oil pumps

Related Parts

• 248421 - 900 psi pump mount CleanLine filter assembly
• 248418 - 900 psi wall mount CleanLine filter assembly
• 15D702 - 900 psi CleanLine screw-on type replacement filter
• 248419 - 1800 psi pump mount CleanLine filter assembly
• 119278 - 1800 psi CleanLine replacement filter element
• 248418 - Zinc 900 PSI Clean Line Filter Assembly Wall Mount, Fire-Ball 300 5:1 Or Lower
• 248421 - Zinc 900 PSI Clean Line Filter Assembly Pump Mount, 3/4 - 14 NPT
• 248419 - 1800 PSI Clean Line Filter Assembly Tank Mount, 3/4 - 14 NPT

Part of the CleanLine Filter Systems family. Handles synthetic motor oils, petroleum based oils, hydraulic oils, gear oils, transmission fluid, and anti-freeze. Filter media is compatible with petroleum-based fluid and most phosphate esters, water/oil emulsions and high water content fluids. For petroleum-based oils, synthetic oils and anti-freeze mixtures. Not for use in explosive atmospheres. CleanLine 1800 filters must be used for anti-freeze mixtures, CleanLine 900 filters are not compatible with anti-freeze. Uses three screws (107) for mounting to bracket instead of four screws like models 248418 and 248421. Part of CleanLine 1800 Filter series. Flow-direction arrows on top of filter assembly must be observed for proper positioning.

Reference Manuals

• 336808 (Page 2) CleanLine Filter System
• 310652 (Page 1) CleanLine Filter
