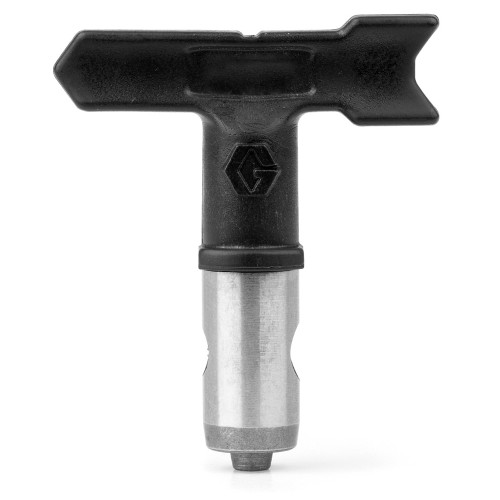

GRACO 286313 - RAC 5 SwitchTip, 313
The Reverse-A-Clean (RAC) 313 RAC 5 SwitchTip is designed for narrow surfaces. The 313 SwitchTip has a 0.013 inch orifice and produces a 6 to 8 inch fan.
Reverse the SwitchTip to easily clear clogs.
Used for residential, commerical or industrial applicaitions. Best used with materials ranging from lacquers, latex paints and mastics.
- Most Widely Used Reversible Spray Tip on the Market (black handle)
- Used for residential and commercial applications
- Includes OneSeal for most common coatings
- Large selection of tip sizes available
- Easy to identify laser stamped tip size
- Solvent seal available when using extremely hot solvents
Related Parts
- 286311 - Rac 5 Switchtip 311, 0.011" Orifice, 3000 PSI
- 286411 - Rac 5 Switchtip, 411 - Reversible Spray Tip
- 286413 - Rac 5 Switchtip, 413
- 286415 - Rac 5 Switchtip, 415
- 286515 - Rac 5 Switchtip, Size 515
- 286417 - Rac 5 Switchtip, 417
- 286517 - RAC 5 .017 Spray Tip 10" Fan
- 286619 - Rac 5 Switchtip, 619
Reference Manuals
- 332689 (Page 19) 16J750, 16J751, 16W123 Magnum X5, X7, Pro X9 Airless Sprayer, Operation
- 3A4421 (Page 26) Project Painter Plus Electric Airless Sprayer
Specifications:
| Compatible Material | Latex Paint, Latex Stain, Oil-Based Paint, Oil-Based Stain |
| For Use With | RAC 5 HandTite Tip Guard |
| Maximum Fan Width (in) | 6 |
| Maximum Flow Rate (GPM) | 0.18 |
| Maximum Working Pressure (psi) | 4050 |
| Minimum Fan Width (in) | 6 |
| Model | RAC 5 |
| Orifice Diameter (in) | 0.013 |
| Series | SwitchTip |
| Type | Spray Tip |
