GRACO 288629 - TexSpray RTX Air Trigger Gun, 125 PSI

Item #: 288629

Price: with strikethrough $142.00

Retail Price:

Sale Price: Price $133.68

QTY:

Usually ships in 2-3 business days

Most orders over $299
ship for free | See Details

Have a Question?
ASK NATE

Get Expert Advice or

Call 888-654-8898

Get Expert Advice or

Call 888-654-8898

Need this Product for a Specific Application?

Use our handy finder to find the exact model for your needs.

FIND MY PRODUCT

Related Items

Item Description

GRACO 288629 - TexSpray RTX Air Trigger Gun, 125 PSI

Additional Specifications

Max Working Pressure: 125 PSI (8.75 bar, 0.875 MPa) Maximum Air Working Pressure / 70 PSI (4.9 bar, 0.49 MPa) Maximum Fluid Working Pressure
Material: For Water-Based Materials Only

Specifications

Compatible Material	Water-Based Paint
Component Type	Single Component
For Use With	RTX 900/1250 Texture Sprayer
Gun Activation	Manual
Gun Type	Texture Gun
Gun Weight (oz)	35
Maximum Air Inlet Pressure (MPa)	0.9
Maximum Air Inlet Pressure (psi)	130.5
Maximum Air Pressure (MPa)	0.9
Maximum Air Pressure (psi)	125
Maximum Fluid Pressure (MPa)	0.49
Maximum Fluid Pressure (psi)	70
Model	TexSpray
Purge Method	Liquid
Series	RTX 5500PX
Trigger Lock	Locking
Trigger Type	Full-Hand
Type	Spray Gun

Compatible Equipment

Models 254970
Models 254973
Water-based materials only

Related Parts

288740 - MOTOR (includes item 39)
288229 - TRAY, motor, weld
288225 - PULLEY, w/rollers
288628 - Texspray Rtx Air Trigger Gun
245924 - Texture Gun & Hopper
19B120 - Linelazer Gun, Spray, Glass Beads, 125 PSI

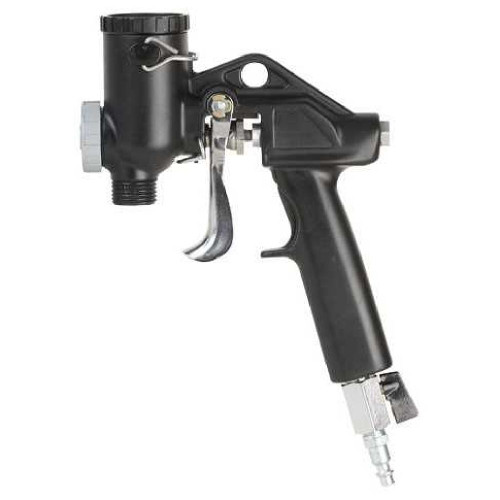

Reference number 30 in the parts list, quantity 1 This is reference #30 in the parts list with quantity 1 This is one of four texture gun models listed (288628, 288629, 245924, 19B120). The image shows Model 288629 as a handheld spray gun without hopper, distinguished from Model 288628 (without hopper) and Model 245924 (with hopper) and Model 19B120.

Reference Manuals

311769 (Page 18) TX 65 Interior Texture Sprayer, Repair
311771 (Page 18) Interior Texture Sprayer TX 650, Repair
311777 (Page 1) Repair, Texture Guns
3A3258 (Page 33) RTX1400SI, RTX2000PI & RTX2500PI Texture Sprayers, Operation, Parts

Specifications
