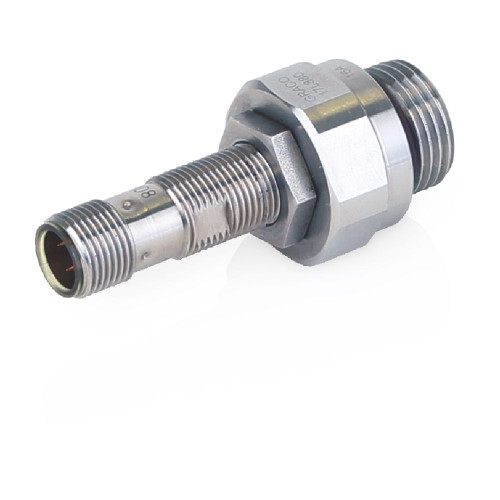

GRACO 557745 - N.O Ul/Csa Msp Proximity Switch, 242 Bar (3500 PSI, 24 MPa) Maximum

MHIP Field Sensitive Magnetic Explosion Proof O-Ring Seal proximity switch designed for industrial fluid handling applications requiring explosion-proof rated sensing in hazardous environments

Specifications

• Max Working Pressure: 242 bar (3500 psi, 24 MPa) maximum
• Material: ceramic magnet operated switch
• Classification: Class 1, Groups A-D
• Seal Type: O-Ring Seal
• Sensing Type: Field Sensitive Magnetic
• Cycle Rate: up to 200 cycles per minute
• Contact Type: dry contact
• Lead Type: pigtail lead
• Explosion Proof: yes

Features

• Explosion proof design for hazardous locations
• Field sensitive magnetic operation
• O-ring seal for reliable sealing
• Class 1, Groups A-D certification
• Designed for MHIP applications

Applications

• Divider valve sensing applications
• Hazardous location proximity switching
• Industrial fluid handling systems
• MHIP (medium to high pressure) equipment

Compatible Equipment

• MHIP systems
• MS divider valves
• MH divider valves
• MS & MH valve sections

Related Parts

• 557741 - Switch, Prox, Msp Feeder
• 557746 - Switch, Prox, Msp Feeders
• 557747 - Switch, Prox, Msp Feeder
• 563476 - Field Sensitive Magnetic (FSM) Proximity Switch for MXP & MX divider valves, 3 pin BH connector
• 564399 - Switch, Prox Assembly Mxp 5 Pin, 242 Bar (3500 PSI, 24 MPa) Maximum
• 558933 - Stainless GRACO 558933 Field Sensitive Magnetic Proximity Cycle, 3-Pin - Ms

Part of the proximity switches for divider valves product line, specifically designed for explosion-proof applications in Class 1, Groups A-D hazardous environments Field Sensitive Magnetic Proximity Switch used at pressures that do not exceed 242 bar (3500 psi, 24 MPa) at cycle rates up to 200 cycles per minute. Used in MS, MH, MX, MXP and MGO divider valves. An explosion proof version for MS/MH divider valves is available. For professional use only. UL and CE listed.

Reference Manuals

• 339427 (Page 23) Automatic Lubrication Systems
• 312497 (Page 43) Trabon Divider Valves .
• 313228 (Page 1) Field Sensitive Magnetic Proximity Cycle Switch
