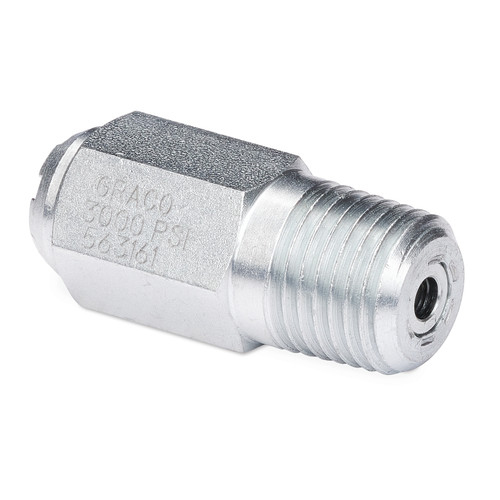

GRACO 563169 - Relief Valve, 1/8 NPT 3000 PSI, 1/8 NPTF

Specifications

• Thread: 1/8 NPTF
• Max Working Pressure: 207 bar (3000 PSI)
• Material: 303 SST
• Part Number: 563169
• Ordering Code: (508-310-300)
• Fitting Type: 1/8 in NPSF w/O-Ring MHH, MSP and MXP
• Color: Purple
• Type: MJ, MH, MSP, MXP
• Tolerance: ± 24%

Features

• Automatic relief indication
• High pressure capability up to 207 bar
• Visual system monitoring
• Professional grade construction
• Automatic relief operation with visual indication
• Piston-operated mechanism with spring reset

Applications

• Professional spray applications
• High-pressure fluid systems
• System pressure monitoring
• Relief valve indication
• Secondary divider valve systems
• Lube line blockage detection and relief

Compatible Equipment

• MJ series equipment
• MS series equipment
• MH series equipment
• MXP series equipment
• Secondary divider valves
• Trabon lubrication systems

Related Parts

• 563163 - Valve Relief 1/8 NPT 750 PSI, 1/8 NPTF
• 563164 - Valve Relief 1/8 NPT 1000 PSI, 1/8 NPTF
• 563166 - Valve Relief 1/8 NPT 1500 PSI, 1/8 NPTF
• 563167 - Valve Relief 1/8 NPT 2000 PSI, 1/8 NPTF
• 563168 - Relief Valve, 1/8" NPT 2500 PSI, 1/8" NPTF
• 563170 - Valve Relief Indicator O-Ring 750 PSI, 1/8" NPTF
• 563171 - Valve Relief Indicator O-Ring 1000 PSI, 1/8" Npsf w/o-Ring
• 563172 - Valve Relief Indicator O-ring 1250 psi
• 563173 - Valve Relief Indicator O-ring 1500 psi

Part of a complete family of automatic relief indicators available in pressure ranges from 52 bar to 207 bar for various equipment series Should be used with a separate pressure switch connected to an audible or visual alarm to warn of high pressure. Formerly identified by spring retainer color (now pressure ratings are stamped on body). Recommended to select next higher pressure rating when replacing discontinued models. Purple colored automatic relief indicator that pinpoints lube line blockage but allows the lube system to continue supplying lubricant to points that are not blocked. Used primarily in secondary divider valves. The excessive pressure created by line blockage moves a piston, enabling the lubricant to escape through a vent. When pressure is relieved the spring resets the piston. A separate pressure switch connected to an audible or visual alarm should be used to warn of high pressure.

Reference Manuals

• 339427 (Page 22) Automatic Lubrication Systems
• L15401EN - C (Page 2)
• 312497 (Page 39) Trabon Divider Valves .
