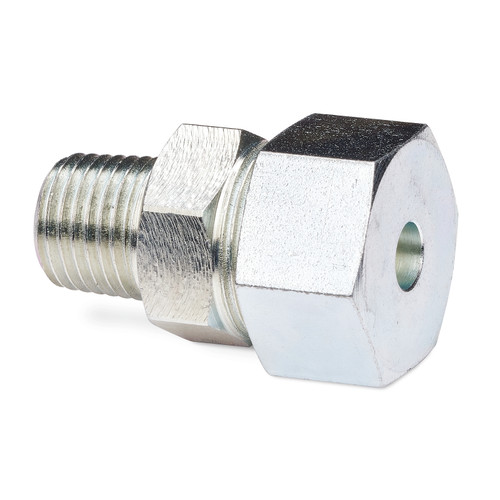

GRACO 563179 - Rupture-to-Atmosphere Indicators for MX Divider Valves - 1450 PSI, 1/4 inch-18" NPT(F) - Oil

Standard Blowout Assembly designed for baseplate manifolds, rated for high-pressure hydraulic applications up to 1450 PSI (99.9 bar). This essential safety component helps prevent system damage and maintains proper fluid flow in Trabon Modu-Flo lubrication systems.

Specifications

• Thread: 1/4"-18 NPTF
• Max Working Pressure: 100 bar (1450 PSI)
• Indicator Type: rupture-to-atmosphere
• Cross Reference: 509-206-100

Features

• Rupture-to-atmosphere safety indication
• 100 bar pressure rating
• NPTF threading for secure connection
• High pressure rating up to 1450 PSI
• Standard blowout assembly design
• Compatible with baseplate manifolds

Applications

• MX divider valve systems
• Pressure safety monitoring
• Industrial lubrication systems
• Baseplate manifold systems
• Trabon Modu-Flo lubrication systems
• High-pressure hydraulic applications

Compatible Equipment

• MX divider valves
• MJ systems
• MS systems
• MH systems
• MXP systems
• Trabon Modu-Flo baseplate manifolds

Related Parts

• 563182 - Rupture-to-Atmosphere Indicators for MX Divider Valves - 1750 PSI, 1/4 inch-18" NPT(F)
• 563184 - Rupture-to-Atmosphere Indicators for MX Divider Valves - 2350 PSI, 1/4 inch-18" NPT(F) - Grease
• 563185 - Rupture-to-Atmosphere Indicators for MX Divider Valves - 2950 PSI, 1/4 inch-18" NPT(F)
• 563186 - Valve, Relief, 1/4 1450 PSI
• 563188 - Valve, Relief, 1/4 2350 PSI
• 563207 - Outlet Check Valve
• 563211 - System Fill Check Valve
• 563186 - Tubed Blowout Assembly (1450 PSI / 99.9 bar)

Part of a complete family of rupture-to-atmosphere indicators available in different pressure ratings from 100 bar to 203 bar for various system requirements Part of the accessories for baseplate manifolds in the Trabon Modu-Flo L12000 system. Available with NPT GRACO part number 563179 and NPT Lubriquip part number 509-206-100. This is a pressure indicator option that comes included with baseplate. Cross-referenced as 509-206-100.

Reference Manuals

• 339427 (Page 22) Automatic Lubrication Systems
• L12000EN - D (Page 6)
• L15401EN - C (Page 3)
• 312497 (Page 40) Trabon Divider Valves .
