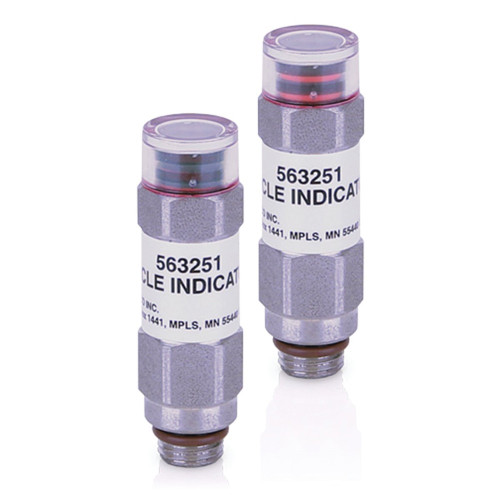

GRACO 563251 - O-Ring Seal Msp & Mhh Divider Valve Smagnetic Visual Cycle Indicator
No Weep Cycle Indicator - A visual indicator component for MSP (Modular Spray Package) systems that eliminates weep cycles, providing clear operational status feedback to operators while reducing material waste and improving system efficiency.
Features
- Magnetic visual cycle indicator
- Designed for MSP pumps
- Provides visual pump cycle feedback
- Visual cycle indication
- Assembly includes all necessary components
- Compatible with multiple pump models
Applications
- Pump cycle monitoring
- Maintenance scheduling
- Operational status indication
- Spray foam applications
- System troubleshooting
- MSP spray systems
Compatible Equipment
- MSP pumps
- MS pumps
- MH pumps
- MJ pumps
- MXP pumps
- MSP Modular Spray Package systems
Related Parts
- 17L879 - Proximity Switch, M11 x 1, 5075 PSI
- 17L983 - Proximity Switch, 7/16-20, 7500 PSI
- 26C822
- 26C823
- 563260 - MXP Visual Cycle Indicator Assembly
- 563250 - MHP No Weep Cycle Indicator (NPT)
- 564357 - MHP Cycle Switch, DPDT, Bracket Assembly
- 563272 - MS, MH, MJ and MXP Cycle Switch, SPDT, and Bracket Assembly
- 563273 - MS, MH, MJ and MXP Cycle Switch and Bracket Assembly, SPDT, Moisture Resistant
- 563929 - MSP Cycle pin indicator repair kit, o-ring
Listed as optional accessory for MSP pumps in proximity switches & indicators category This is a visual cycle indicator assembly specifically designed for MS, MH, MJ and MXP series pumps This is an accessory component for MSP systems. The page shows it's part of a comprehensive MSP modular system with various inlets, bases, tie rods, and repair components available.
Reference Manuals
- 300765 (Page 8) Automatic Lubrication
- 339427 (Page 23) Automatic Lubrication Systems
- 340800 (Page 10) Series Progressive Divider Valves
- 352295 (Page 4) Fracturing Equipment Selection Guide
- 352482 (Page 13) GM Powertrain Program Book
