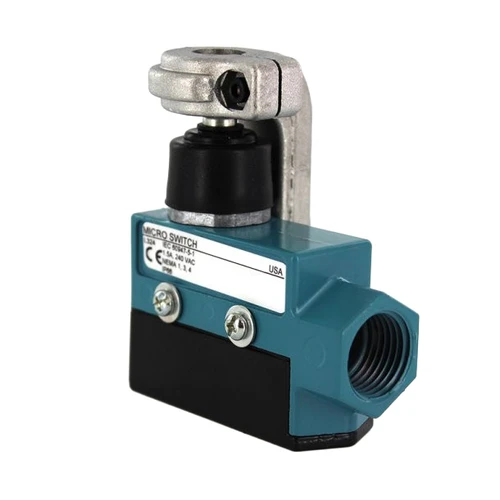

GRACO 563272 - Cycle Switch & Bracket Assembly MJ, MSP & MXP Divider Valves
Monitors piston movement to ensure completed lubrication cycle–must have cycle indicator pin
Provides positive feedback based on actual metering piston movement
Mounts to MJ, MSP, MXP, or MX divider with cycle pin option with simple install
Able to be set for normally open or normally closed operation
Specifications
- Switch Type: SPDT (Single Pole Double Throw)
- Electrical Ratings: 15 amps at 125, 250 and 480 VAC; 1/2 amp at 125 VDC, 1/4 amp at 250 VDC, 6.0 amp at 24 VDC Non-Inductive
Features
- SPDT switching configuration
- Integrated bracket assembly
- Compatible with multiple divider valve series
- Reliable cycle indication
- Moisture resistant design when used with appropriate components
- SPDT bracket assembly
Applications
- Divider valve cycle monitoring
- Pneumatic lubrication systems
- Industrial equipment cycle control
- Automated lubrication applications
- Cycle monitoring in lubrication systems
- Progressive divider valve control
Compatible Equipment
- MS Divider Valves
- MH Divider Valves
- MXP Divider Valves
- MJ Series Flo Divider Valves
Related Parts
- 563273 - MS, MH, MJ and MXP Cycle Switch and Bracket Assembly, SPDT, Moisture Resistant
- 557781 - Replacement Switch, SPDT for 563272
- 557546 - Replacement Bracket for 563272, 563273
- 563251 - MS, MH, MJ and MXP Visual Cycle Indicator Assembly
- 563260 - MXP Visual Cycle Indicator Assembly
- 563273 - MJ Cycle Switch (SPDT) Bracket Assembly - Moisture Resistant
- 563948 - Cycle Indicator Repair Kit
- 557514 - Replacement Gasket
- 557781 - Replacement Switch
- 563273 - Moisture Resistant Cycle Switch with 6-foot Cable and Bracket Assembly SPDT
Replacement parts available separately including switch (557781) and bracket (557546). Enhanced moisture resistant version available as 563273. Part of the MJ Spare Parts family for Trabon MJ Divider Valve maintenance and upgrades The cycle switch must be attached to a section that is equipped with a cycle indicator pin. Function is to electrically assure that the lubricant is flowing through the system. Actuated by a cycle pin, the cycle switch can be wired to various controls.
Reference Manuals
- 339427 (Page 23) Automatic Lubrication Systems
- 340800 (Page 9) Series Progressive Divider Valves
- L10131EN - C (Page 2)
- L12000EN - D (Page 13)
- 312497 (Page 42) Trabon Divider Valves .
