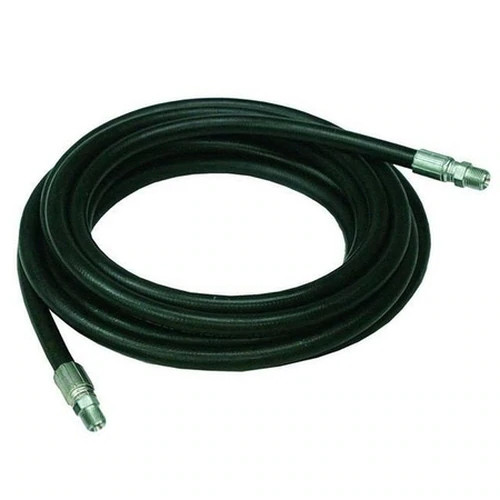

GRACO 109167 – Coupled Lubrication Hose for Fire-Ball 300, 3/8" x 25 ft, 1/4 NPT(MBE)

GRACO 109167 – Coupled Lubrication Hose for Fire-Ball 300, 3/8" x 25 ft, 1/4 NPT(MBE)

Item #: 109167

Price: $646.00

Expected ship date is May 22nd 2026

QTY:

Ships in 2-3 weeks

Most orders over $299
ship for free | See Details

Have a Question?
ASK NATE

Get Expert Advice or

Call 888-654-8898

Get Expert Advice or

Call 888-654-8898

Need this Product for a Specific Application?

Use our handy finder to find the exact model for your needs.

FIND MY PRODUCT

Item Description
GRACO 109167 - 1/4" x 25ft Lubrication Hose for Fire-Ball 300, Mtbe, 1/4 NPT

Specifications
- Inside Diameter: 3/8"
- Length: 25 ft. (7.6 m)
- Thread: 1/4 NPT
- Material: mtbe
- Coupling: 1/4 NPT
Compatible Equipment
- 226269 - Fire-Ball 300 Series 15:1 400 Lb. Undercoating Pump - Stationary Package - 400 lb Stationary Drum Size Unit
- Models 220170 - Fire-Ball 300 Series 15:1 120 lb. Grease Pump - Stationary Pail Dispenser Package, 241044
- Dispense Kit 222081 - Dispense Kit for Fire-Ball 300 15:1 Grease Pump Packages 25 ft (7.6 m) Hose
Related Parts
- 242056 - VALVE, dispense
- 110198 - COUPLER, quick-disconnect, 3/8 NPT (F)
- 169971 - NIPPLE, quick-disconnect
- 110234 - REGULATOR, air
- 156849 - NIPPLE, 3/8 NPT
- 202577 - Z-SWIVEL
Part 109167 is reference number 107 in the dispense kit 222082 for the Model 226269 400 lb Stationary Drum Size Unit This hose is part of the Dispense Kit Model 222081 and appears to be designed for lubrication systems with Fire-Ball pumps This hose is part of Dispense Kit Model 222081 and appears to be made with MTBE material with a 1/4 NPT coupling

Reference Manuals
- 336833 (Page 134) Single Component Catalog - Buyer's Guide and Specifications
- 307879 (Page 9) 15:1 Ratio Fire-Ball Undercoater Pumps
- 307882 (Page 9) 15:1 Ratio Fire-Ball Lubrication Pumps
Specifications
GRACO 109167 - 1/4" x 25ft Lubrication Hose for Fire-Ball 300, Mtbe, 1/4 NPT

Specifications
- Inside Diameter: 3/8"
- Length: 25 ft. (7.6 m)
- Thread: 1/4 NPT
- Material: mtbe
- Coupling: 1/4 NPT
Compatible Equipment
- 226269 - Fire-Ball 300 Series 15:1 400 Lb. Undercoating Pump - Stationary Package - 400 lb Stationary Drum Size Unit
- Models 220170 - Fire-Ball 300 Series 15:1 120 lb. Grease Pump - Stationary Pail Dispenser Package, 241044
- Dispense Kit 222081 - Dispense Kit for Fire-Ball 300 15:1 Grease Pump Packages 25 ft (7.6 m) Hose
Related Parts
- 242056 - VALVE, dispense
- 110198 - COUPLER, quick-disconnect, 3/8 NPT (F)
- 169971 - NIPPLE, quick-disconnect
- 110234 - REGULATOR, air
- 156849 - NIPPLE, 3/8 NPT
- 202577 - Z-SWIVEL
Part 109167 is reference number 107 in the dispense kit 222082 for the Model 226269 400 lb Stationary Drum Size Unit This hose is part of the Dispense Kit Model 222081 and appears to be designed for lubrication systems with Fire-Ball pumps This hose is part of Dispense Kit Model 222081 and appears to be made with MTBE material with a 1/4 NPT coupling

Reference Manuals
- 336833 (Page 134) Single Component Catalog - Buyer's Guide and Specifications
- 307879 (Page 9) 15:1 Ratio Fire-Ball Undercoater Pumps
- 307882 (Page 9) 15:1 Ratio Fire-Ball Lubrication Pumps
