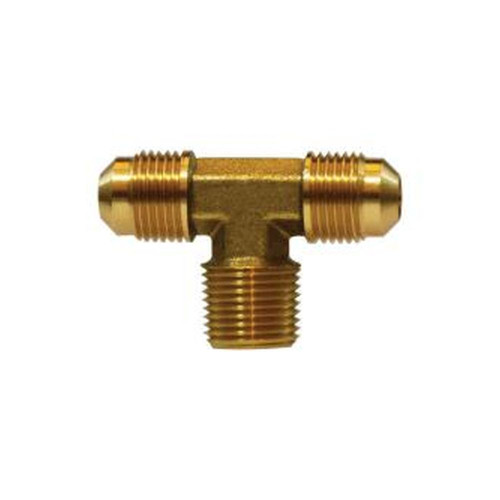

AMC 04045-0202 Branch Tee, 1/8" SAE 45 deg Male Flared x 1/8" SAE 45 deg Male Flared x 1/8" MNPT,

Item #: 04045-0202-MIDLAND

Price: $9.34

Most orders over $299
ship for free | See Details

Need this Product for a Specific Application?

Use our handy finder to find the exact model for your needs.

Essential Accessories

AMC 04045-0202 Branch Tee, 1/8" SAE 45 deg Male Flared x 1/8" SAE 45 deg Male Flared x 1/8" MNPT, Brass

SKU: 04045-0202
Additional Information	0.03 in Tube Wall Thickness
Connection Size 1	1/8 in
Connection Size 2	1/8 in
Connection Size 3	1/8 in
Connection Type	Male SAE Flared\|Male SAE Flared\|MNPT
Connection Type 1	SAE 45 deg Male Flared
Connection Type 2	SAE 45 deg Male Flared
Connection Type 3	MNPT
Fitting Type	Tee
For Use With	Aluminum, Brass, Copper, Steel Hydraulic Tubing That Can Be Flared
Material	Brass
Material Construction	Forged Brass
Pressure Rating	2800 psi
Temperature Rating	-65 to 250 deg F
Thread Size	5/16-24 x 1/8-27
