Item #: 04048-0304O-MIDLAND
Price: $5.73
Call 888-654-8898
Need this Product for a Specific Application?
Use our handy finder to find the exact model for your needs.

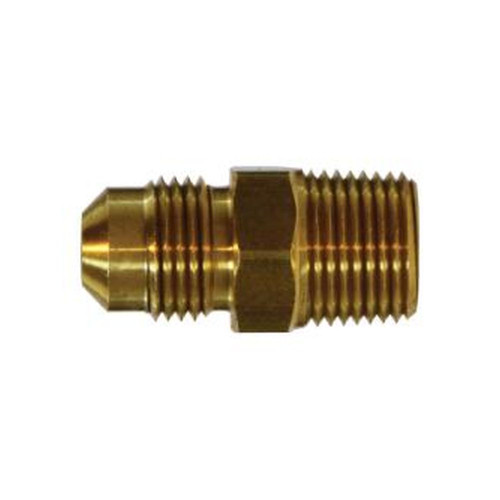

AMC 04048-0304O Adapter, 3/16" SAE 45 deg Male Flared x 1/4" Male NPTF, Brass
| SKU: 04048-0304O | |
|---|---|
| Additional Information | 0.03 in Tube Wall |
| Connection Size 1 | 3/16 in |
| Connection Size 2 | 1/4 in |
| Connection Type | Male SAE Flared|MNPT |
| Connection Type 1 | SAE 45 deg Male Flared |
| Connection Type 2 | Male NPTF |
| Fitting Type | Adapter |
| For Use With | Copper, Brass, Aluminum, Steel Hydraulic Tubing |
| Material | Brass |
| Material Construction | Brass |
| Pressure Rating | 1900 psi |
| Temperature Rating | -65 to 250 deg F |
| Thread Size | 3/8-24 x 1/4-18 |
Features:
These fittings are completely interchangeable with full pattern fittings, but have been modified in some way. This modification is usually in the length of the pipe threads. Used in plumbing and light industrial applications
AMC 04048-0304O Adapter, 3/16" SAE 45 deg Male Flared x 1/4" Male NPTF, Brass
| SKU: 04048-0304O | |
|---|---|
| Additional Information | 0.03 in Tube Wall |
| Connection Size 1 | 3/16 in |
| Connection Size 2 | 1/4 in |
| Connection Type | Male SAE Flared|MNPT |
| Connection Type 1 | SAE 45 deg Male Flared |
| Connection Type 2 | Male NPTF |
| Fitting Type | Adapter |
| For Use With | Copper, Brass, Aluminum, Steel Hydraulic Tubing |
| Material | Brass |
| Material Construction | Brass |
| Pressure Rating | 1900 psi |
| Temperature Rating | -65 to 250 deg F |
| Thread Size | 3/8-24 x 1/4-18 |
Features:
These fittings are completely interchangeable with full pattern fittings, but have been modified in some way. This modification is usually in the length of the pipe threads. Used in plumbing and light industrial applications
