Item #: 04059-100806-MIDLAND
Price: $14.80
Call 888-654-8898
Need this Product for a Specific Application?
Use our handy finder to find the exact model for your needs.

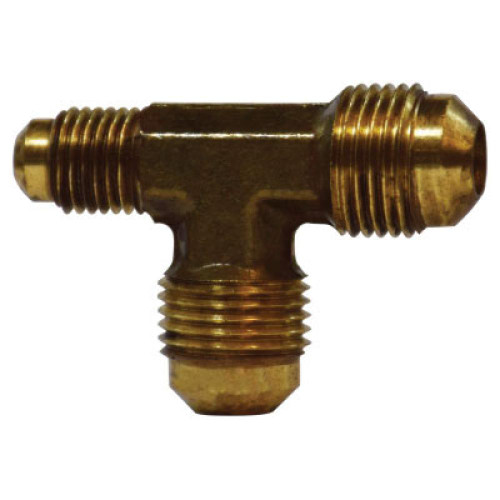

AMC 04059-100806 Reducing Tee, 5/8" SAE 45 deg Flared x 1/2" SAE 45 deg Flared x 3/8" SAE 45 deg Flared, Brass
| SKU: 04059-100806 | |
|---|---|
| Additional Information | 0.035 in Tube Wall Thickness |
| Connection Size 1 | 5/8 in |
| Connection Size 2 | 1/2 in |
| Connection Size 3 | 3/8 in |
| Connection Type | SAE Flared|SAE Flared|SAE Flared |
| Connection Type 1 | SAE 45 deg Flared |
| Connection Type 2 | SAE 45 deg Flared |
| Connection Type 3 | SAE 45 deg Flared |
| Fitting Type | Tee |
| For Use With | Aluminum, Brass, Copper, Steel Hydraulic Tubing That Can Be Flared |
| Material | Brass |
| Material Construction | Brass |
| Pressure Rating | 650 psi |
| Temperature Rating | -65 to 250 deg F |
| Thread Size | 7/8-14 x 3/4-16 x 5/8-18 |
AMC 04059-100806 Reducing Tee, 5/8" SAE 45 deg Flared x 1/2" SAE 45 deg Flared x 3/8" SAE 45 deg Flared, Brass
| SKU: 04059-100806 | |
|---|---|
| Additional Information | 0.035 in Tube Wall Thickness |
| Connection Size 1 | 5/8 in |
| Connection Size 2 | 1/2 in |
| Connection Size 3 | 3/8 in |
| Connection Type | SAE Flared|SAE Flared|SAE Flared |
| Connection Type 1 | SAE 45 deg Flared |
| Connection Type 2 | SAE 45 deg Flared |
| Connection Type 3 | SAE 45 deg Flared |
| Fitting Type | Tee |
| For Use With | Aluminum, Brass, Copper, Steel Hydraulic Tubing That Can Be Flared |
| Material | Brass |
| Material Construction | Brass |
| Pressure Rating | 650 psi |
| Temperature Rating | -65 to 250 deg F |
| Thread Size | 7/8-14 x 3/4-16 x 5/8-18 |
