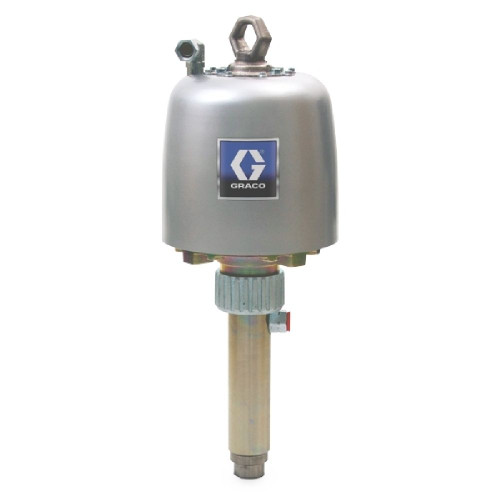

GRACO 218334 Bulldog 43:1 Hydraulic Supply Pump
Features:
The Bulldog 43:1 air-powered pump, with its efficient, large ported air valve, is the highest-performing in its class. Downtime is minimized by an air motor design that has been developed and tested for more than 10 million cycles of operation.
Supplies hydraulic oil to accumulators in oil rig blow-out prevention systems.
Compatible Equipment
- oil rig blow-out prevention system
Related Parts
- 107142 - 1/2 inch npt inlet and outlet air pressure regulator
- 206197 - 1/2 inch npt inlet and outlet air pressure regulator
- 207755 - 3/4 inch npt inlet and outlet air pressure regulator
- 106149 - 1/2 inch npt inlet and outlet air line filter
- 106150 - 3/4 inch npt inlet and outlet air line filter
- 214848 - 1/2 inch npt inlet and outlet air line lubricator
- 214849 - 3/4 inch npt inlet and outlet air line lubricator
- 103538 - Grounding clamp
- 222011 - Ground wire
- 24U227 - Pump lower repair kit
Reference Manuals
- 352287 (Page 2) Bulldog 43:1 Air-Powered Pump
- 307714 (Page 1) 43:1 Bulldog Hydraulic Supply Pump
Specifications:
| Air Inlet Size (in) | 0.5 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPSM |
| Application | Industrial |
| Compatible Material | Oil |
| Fluid Inlet Size (in) | 1 |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (in) | 3/4 |
| Fluid Outlet Thread Gender | Female |
| For Use With | Petroleum- and syntheticbased oils (motor, gear, hydraulic and ATF) |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Flow Rate (GPM) | 26.5 |
| Maximum Working Pressure (MPa) | 30.1 |
| Maximum Working Pressure (psi) | 4300 |
| Pump Ratio | 43:1 |
| Type | Pneumatic Piston Pump |
| Wetted Material | Chrome Plating, Carbon Steel, Nickel Plating, Zinc Plating, Stainless Steel, Brass, Buna-N |
