GRACO 26A883 - Compact Dyna-Star Direct Wire Harness, 3 ft

GLCX to CDS 3 ft cable for connecting GRACO Compact Dyna-Star pumps to monitoring and control systems. This cable enables communication between the pump controller and data collection systems for time-based monitoring with optional RPM input count and downloadable system monitoring capabilities.

Features:

Directly connects GLC X to Compact Dyna-Star.

Additional Specifications

• Length: 1 m (3 ft)
• Cable Type: GLCX to COS connection

Features

• Connects GLC X controller to compact Dyna-Star pumps
• 3-foot cable length for flexible installation
• Designed for reliable communication between controller and pump
• Enables system monitoring and data collection
• Compatible with GLCX controller systems
• Supports optional RPM input counting

Applications

• Smart pump control systems
• Automated dispensing applications
• Industrial fluid handling systems
• Fracturing operations monitoring
• Automated lubrication system control
• Data collection and system monitoring

Compatible Equipment

• GLC X Smart Controller

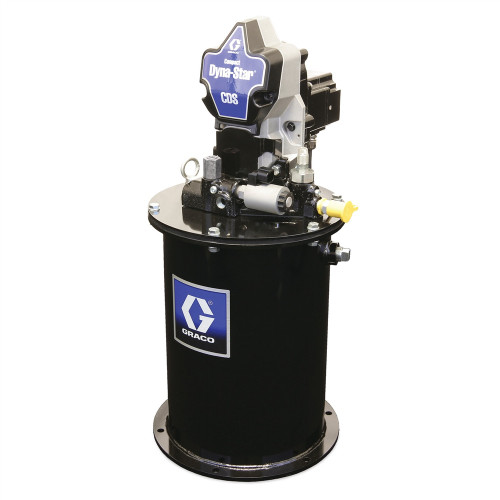

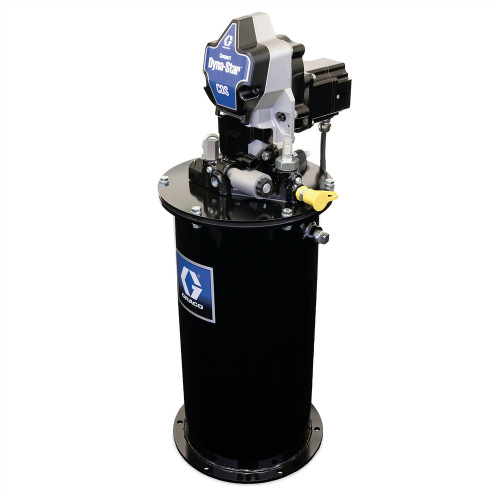

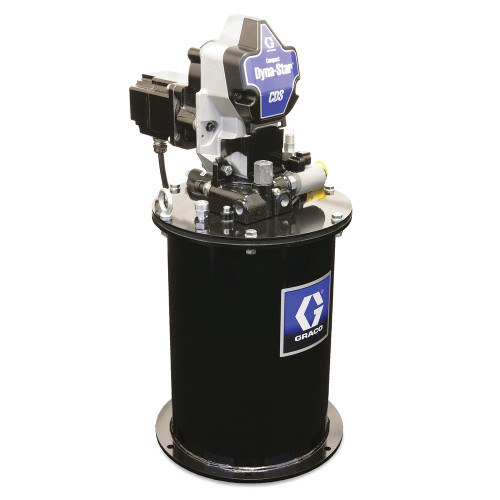

• Compact Dyna-Star pumps
• Compact Dyna-Star 24 VDC pumps
• GLCX Controller (26A814)
• GL-1 Injector systems
• Triplex frac kit systems

Related Parts

• 26A853 - GLC X pump simulator
• 26A892 - GLC X 6 m (20 ft) cable
• 26A888 - 14-pin mating connector kit
• CD2221 - Compact Dyna-Star 24 VDC
• 25R318 - Bracket, GLCX and GL1
• 26A814 - GLCX Controller
• 114903 - GL-1 Injector 3 manifold
• CD2221 - Compact Dyna-Star 24VDC
• 114905 - GL-1 injector 5 manifold
• 17L754 - Dust cap, GL-1

This is a communication cable accessory for the GLC X Smart Controller system, specifically designed for compact Dyna-Star pump integration This cable is included as part of the 24 VDC Compact Dyna-Star Grease / GL-1 Injectors Triplex Kit and is essential for system monitoring and control functionality. This cable is included as part of the complete Quintuplex Frac Kit which provides automated lubrication for five-piston quintuplex pumps with various piston diameter options and configurable lube rates.

Reference Manuals

• 300763 (Page 9) Automatic Lubrication
• 352295 (Page 14) Fracturing Equipment Selection Guide
• 352725 (Page 2) DYNA-STAR® AIR-POWERED PUMP
• 352731 (Page 2) GLC™ X Smart Controller and Auto Lube™ App
• 3A7031 (Page 23) GLCX Lubrication Controller, Manual Instructions
