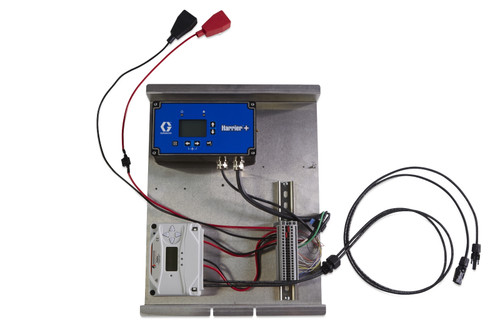

GRACO B52432 - Four-Battery Control Box w/ Harrier+ GSM USA Controller, includes ASC 24/16 One Panel Charge Controller
When specifying the correct chemical injection system, it’s important to ensure the correct control box configuration is used to ensure proper operation. Graco offers plastic or steel boxes, AC and DC powered, plus standard options all the way up to NEMA-rated box options to help meet the chemical injection application requirements. The Modular Control Boxes are customizable so the correct configuration can be achieved based on your application needs.
Specifications
- Voltage: 24 VDC
- Battery Configuration: Four-battery back panel
- Panel Count: One panel
- Controller Type: Harrier+ GSM USA
- Charge Controller: ASC 24/16
- Panel Configuration: one panel
- Battery Packs: two battery packs
Features
- Four-battery configuration for extended runtime
- Harrier+ GSM USA cellular communication controller
- ASC 24/16 charge controller for 24 VDC operation
- Modular control box design
- Back panel battery configuration
- Single solar panel support
Applications
- Chemical injection applications
- Remote monitoring and control
- Extended battery backup requirements
- Solar-powered pump control systems
- Chemical injection systems
- Remote monitoring applications
Compatible Equipment
- 24 VDC pumps
- Single solar panel systems
- GSM cellular networks in USA
- Chemical injection pumps
- Solar panel systems
- GSM communication networks
Related Parts
- B52428 - Four-Battery Control Box w/o Controller, includes ASC 24/16 One Panel Charge Controller
- B52429 - Four-Battery Control Box w/ Harrier EZ Controller, includes ASC 24/16 One Panel Charge Controller
- B52431 - Four-Battery Control Box w/ Harrier+ SCADA Controller, includes ASC 24/16 One Panel Charge Controller
- B52433 - Four-Battery Control Box w/ Harrier+ International Controller, includes ASC 24/16 One Panel Charge Controller
- B52435 - Four-Battery Control Box w/o Controller, includes SS20L-24V One Panel Charge Controller
- B52436 - Four-Battery Control Box w/ Harrier EZ Controller, includes SS20L-24V One Panel Charge Controller
- B52438 - Four-Battery Control Box w/ Harrier+ SCADA Controller, includes SS20L-24V One Panel Charge Controller
Kit Contents
- Control box housing
- Harrier+ GSM USA controller
- ASC 24/16 charge controller
- Single panel configuration
Part of the Four-Battery Back Panel Options series. Selection depends on box type, voltage, pump controller, and charge controller requirements for chemical injection applications. Part of comprehensive control box options for chemical injection applications. Selection depends on box type, voltage, pump controller, charge controller and number of solar panels required.
