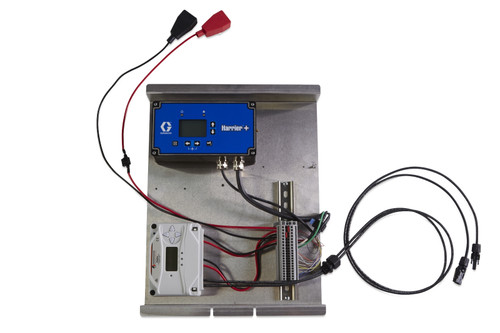

GRACO B52439 - Four-Battery Control Box w/ Harrier+ GSM USA Controller, includes SS20L-24V One Panel Charge Controller
When specifying the correct chemical injection system, it’s important to ensure the correct control box configuration is used to ensure proper operation. Graco offers plastic or steel boxes, AC and DC powered, plus standard options all the way up to NEMA-rated box options to help meet the chemical injection application requirements. The Modular Control Boxes are customizable so the correct configuration can be achieved based on your application needs.
Specifications
- Voltage: 24 VDC
- Solar Panels: one panel
- Battery Configuration: four-battery back panel
- Charge Controller: SunSaver SS20L-24V
- Communication: Harrier+ GSM USA
- Battery Capacity: Four battery configuration
- Panels: One panel
Features
- Four-battery back panel configuration for extended runtime
- Harrier+ GSM USA controller for remote monitoring and communication
- SunSaver SS20L-24V charge controller for solar panel management
- 24 VDC operation
- Single solar panel capability
- Modular design for flexible configuration
Applications
- Chemical injection systems
- Remote monitoring applications
- Solar-powered pump control
- Off-grid chemical treatment operations
- Remote pumping applications
- Applications requiring extended battery backup
Compatible Equipment
- Chemical injection pumps
- Solar panels for charging
- 24 VDC pump systems
Related Parts
- B52435 - Four-Battery Control Box w/o Controller, includes SS20L-24V One Panel Charge Controller
- B52436 - Four-Battery Control Box w/ Harrier EZ Controller, includes SS20L-24V One Panel Charge Controller
- B52438 - Four-Battery Control Box w/ Harrier+ SCADA Controller, includes SS20L-24V One Panel Charge Controller
- B52440 - Four-Battery Control Box w/ Harrier+ International Controller, includes SS20L-24V One Panel Charge Controller
- B52428 - Four-Battery Control Box w/o Controller, includes ASC 24/16 One Panel Charge Controller
- B52429 - Four-Battery Control Box w/ Harrier EZ Controller, includes ASC 24/16 One Panel Charge Controller
- B52431 - Four-Battery Control Box w/ Harrier+ SCADA Controller, includes ASC 24/16 One Panel Charge Controller
Part of comprehensive modular control box family with various voltage, controller, and solar panel options. Selection depends on box type, voltage, pump controller, charge controller and number of solar panels required. Part of the four-battery control box options series. Selection depends on box type, voltage, pump controller, charge controller and number of solar panels required for the chemical injection application.
