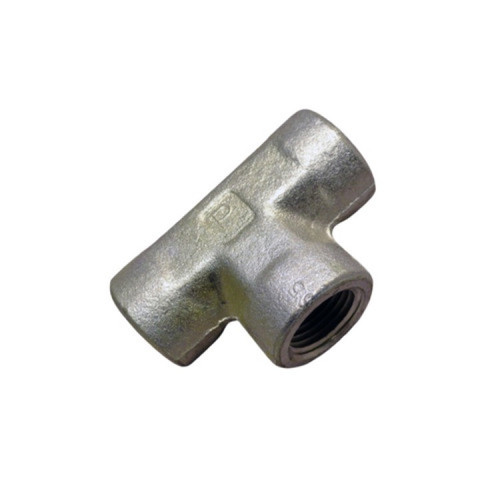

GRACO 104984 - Pipe Tee Fitting, 1/4 NPT

Genuine Graco OEM replacement part built to factory specifications for fit, sealing, and reliable operation in compatible Graco equipment.

Used in Graco equipment assemblies where this part number is specified.

Specifications

• Thread: 1/4 NPT

Compatible Equipment

• 222077 - Fire-Ball 300 Series 15:1 Undercoating/Rustproofing Package - Portable 35 lb. Pail Size Unit
• Dispense Kit 222079 - Dispense Kit for Undercoating & Rustproofing Pump Packages - 15 ft Hose
• 226269 - Fire-Ball 300 Series 15:1 400 Lb. Undercoating Pump - Stationary Package - 400 lb Stationary Drum Size Unit
• Dispense Kit 222082 - Dispense Kit for Undercoating & Rustproofing Pump Packages - 25 ft Hose, Part No. 231113, Series C - 10:1 Ratio Monark Pump, with Check-Mate 450 Severe-Duty Carbon Steel Displacement Pump

Related Parts

• 210657 - BALL VALVE, see 306861 for parts
• 239663 - SWIVEL, see 306861 for parts
• 156971 - NIPPLE, 1/4 NPT
• 100840 - ELBOW, street 1/4 NPT
• 156849 - NIPPLE, 3/8 NPT

Part of the Dispense Kit 222079 assembly, appears to be a pipe tee fitting with 1/4 NPT threading for connecting fluid lines This is a pipe tee fitting used in the dispense kit assembly, quantity required is 1 This is a tee fitting with 1/4 NPT female threads used in the Monark pump assembly

Reference Manuals

• 307879 (Page 7) 15:1 Ratio Fire-Ball Undercoater Pumps
• 308026 (Page 15) 19 liter (5 gallon) Ram-Mounted Pumps
• 308027 (Page 29) Ram-Mounted Pumps
• 308069 (Page 22) Overspray Masking Liquid System
• 308198 (Page 15) Ram-Mounted Pumps
