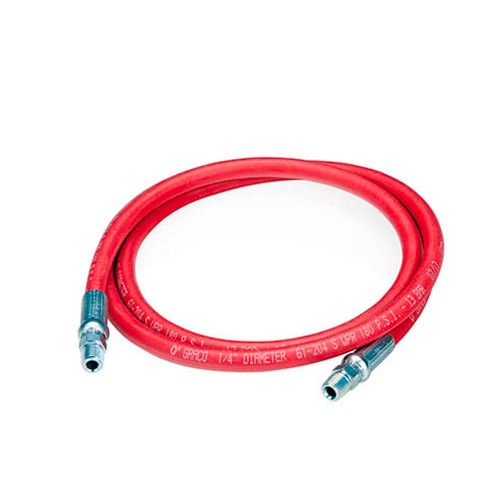

GRACO 109125 - 1/4" x 6 ft (1/4" x 1/4" End Fittings) 180 PSI Air/Water Hose, 1/4" NPT (M)
Genuine Graco OEM replacement part built to factory specifications for fit, sealing, and reliable operation in compatible Graco equipment.
Used in Graco equipment assemblies where this part number is specified.
Specifications
- Inside Diameter: 1/4"
- Length: 72" long
- Thread: 1/4" NPT (mbe)
- Connection Type: male both ends (mbe)
Compatible Equipment
- Model 222602 - Unmetered Dispense Pump
- Model 218115 - Unmetered Dispense Kit
- Models 244681 - Husky 515 Dual Inlet Bulk Anti-Freeze & Windshield Solvent Transfer
- Models 244682 - Husky 716 Single Inlet Antifreeze & Windshield Solvent Transfer Package
Related Parts
- 220596 - Hose, Coupled, 4 ft.
- 110904 - Hose, Coupled
- 205418 - Air/Water Hose, 1/2" x 6 ft (1/2" x 1/2" End Fittings) 180 PSI
This is an air hose component used in unmetered dispense pump systems. The 'mbe' designation indicates male both ends threading. This is part #4 in the assembly diagram. Related parts include 220596 (FLUID HOSE, 4 ft long, nitrile, coupled, 3/8-18 NPT x 1/2-14 NPT(mbe)) and 110904 (SUCTION HOSE, 6 ft long, PVC, coupled) This is an air hose with male pipe thread fittings. There is a related part 205418 which is also listed under item 4 but with different specifications (1/2 in. ID, 1/2 NPT(mbe) x 6 ft for Models 244679 and 244680).
Reference Manuals
- 307637 (Page 7) Electronic POWERFIL Metered Dispense Pumps -Part
- 308426 (Page 5) Air Regulator, Filter, and 55 Gallon Suction Kit
- 309353 (Page 2) Air-Operated Double Diaphragm Bulk Transfer Packages
- 309790 (Page 67) 8900 Proportioner
- 3A9348 (Page 10) 1:1 Ratio Fast-Ball 100 Pump Spigot Kit and Mobile Dolly Kit
