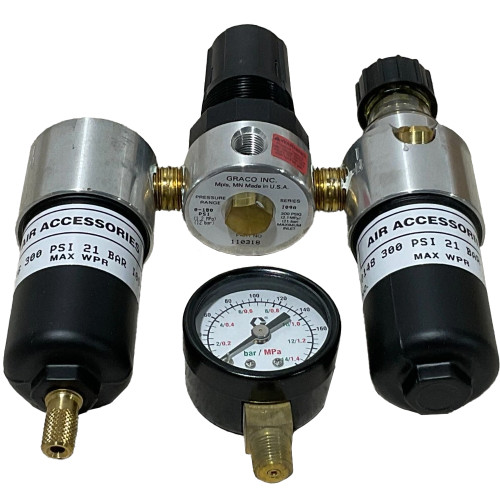

GRACO 110149 - Air Line Filter, Regulator, Lubricator, 1/4" NPT(F) Inlet/Outlet, 300 PSI
Complete air preparation kit designed to protect and extend system component life in pneumatic lubrication systems. This in-line filtration, regulation, and lubrication solution ensures clean, properly conditioned air supply for optimal equipment performance.
Specifications
- Thread: 1/4 inch NPT inlet/outlet
- Max Working Pressure: 300 PSI WPR maximum
- Air Filter Micron Rating: 20 micron
- Regulator Part: 110318
- Lubricator Part: 110148
- Pressure Gauge Part: 110319
Features
- Complete air preparation solution in one kit
- 20 micron air filtration for clean air supply
- Pressure regulation for consistent system operation
- Built-in lubrication for extended component life
- Includes pressure gauge for monitoring
- Compact design for easy installation
Applications
- In-line protection for pneumatic lubrication systems
- Air supply conditioning
- Equipment component life extension
- Pneumatic system maintenance
Compatible Equipment
- equipment shown in Fig. 3 installation diagram
- Fas-Vac
Related Parts
Kit Contents
Not required for operation, but recommended for protecting and extending system component life. Complete kit solution for air preparation needs. Referenced as Kit 110149 in the Air Regulation section. Installation instructions are provided on page 6 of the manual. Used for air regulation in the pumping system. Should be mounted to the Fas-Vac with the Mounting Kit (Part No. 224759). Provides proper conditioning of compressed air to help prolong pump life. The filter removes harmful dirt and moisture from compressed air, the regulator controls air to the pump and the lubricator provides automatic motor lubrication.
