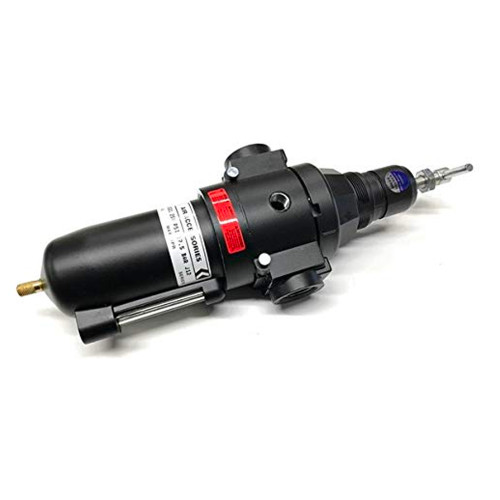

GRACO 116521 - Air Filter/Regulator, 3/4" NPT(F) 125 PSI, 40 micron Polypropylene Filter

Specifications

• Thread: 3/4 in. port
• Filter Micron: 40 micron
• Lubrication: no. 2 lithium-base grease

Compatible Equipment

• 246948 - Integral Filter-Lubricator
• 116521 - Air Filter/Regulator, 3/4" NPT(F) 125 PSI, 40 micron Polypropylene Filter Air Regulator, C11034 Lubricator

Related Parts

• 15C955 - Integral Filter-Lubricator, 1/2" NPT(F) Inlet/Outlet, 250 PSI
• 15C956 - Regulator, Filter, Air, 1/4 NPT, 250 PSI
• 106148 - Zinc Auto Drain Air Filter, 3/8" NPT(F) Inlet/Outlet, 40 Micron, 250 PSI
• 106149 - Air Filter, 1/2" NPT(F) Inlet/Outlet, 40 Micron, Manual Drain, 250 PSI
• 106150 - 250 PSI Manual Drain 40 Micron 3/4" NPT(F) Inlet/Outlet Air Filter
• 110146 - Air Filter, 1/4" NPT(F) Inlet/Outlet, 20 Micron, Manual Drain, 300 PSI
• C36260 - Air Pressure Gauge
• C11034 - Lubricator
• 116634 - Regulator Repair Kit
• 116672 - Bowl Replacement Kit

This filter has multiple repair and replacement kits available: Filter Bowl Replacement Kit 116672, Regulator Repair Kit 116634, and Filter Element Kit 116635 (40 micron filter element) This is a regulator with filter for air applications with 3/4 NPT threading, specifically for Model 246948 This is the main unit shown in Figure 3. Multiple repair kits are available: Kit 116634 (Regulator Repair), Kit 116672 (Bowl Replacement - can be used for both air regulator and lubricator), Kit 116635 (Filter Element Kit with 40 micron filter). Individual parts are not available separately for the repair kits.

Reference Manuals

• 308169 (Page 8) Air Filters, Lubricators, and Kits
• 309341 (Page 6) Air Regulator
• 312585 (Page 20) Hydra-Clean Packages
• 3A0293 (Page 2) Air Controls
• 3A5422 (Page 43) King Sprayer Packages Wall Mount Packages
