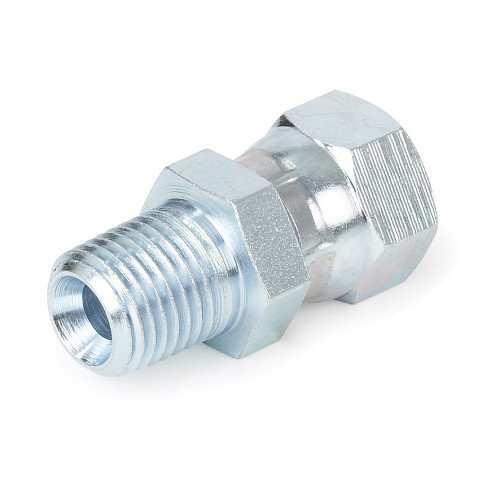

GRACO 117506 - Swvl Fitting, 1/4"-18 NPTF x #6Jic, 1/4 NPT (M) to -6 JIC (F), 5000 PSI (34.5 MPa

Specifications

• Thread: 1/4 npt (m) to -6 JIC (f)
• Max Working Pressure: 5000 psi (34.5 MPa, 345 bar)
• Connection Type: swivel union
• End 1: 1/4 npt (m)
• End 2: -6 JIC (f)
• Side: B side
• Application: inlet

Compatible Equipment

• Power-Lock Hose Bundle systems
• fluid manifolds
• FTS (Fluid Temperature Sensor)

Related Parts

• 117833 - 3/8" NPT x 3/4-16 JIC Straight Adapter
• 116702 - Adapter, Str. 1/4 NPT x 7/8-14JIC
• 116704 - Adapter, Str. 1/4NPT X 9/16-18Jic
• 116765 - NPT x JIC Straight Adapter, 3/8 NPT (M) to -10 JIC (M), 5000 PSI (34.5 MPa
• 117832 - 9/16-18 JIC x 3/8" NPT Adapter
• 119998 - 1/2"-20 JIC x 1/4" NPT Adapter, 1/4 NPT (M) to -5 JIC (M), 5000 PSI (34.5 MPa
• 122406 - 1/2"-20 JIC x 3/8" NPT Adapter, 3/8 NPT (M) to -5 JIC (M), 5000 PSI (34.5 MPa
• 126327 - Swivel Swivel Fitting, 9/16"-18 JIC x 3/8 NPT, 3/8 NPT (M) to -6 JIC (F)

Used to connect hose assembly to fluid manifold and/or FTS. Part of 5000 psi adapter fittings series. Use JIC swivel fittings to connect female FTS to male end hoses and/or npt female ball valves on mix manifold inlets. Reference number 12 in the diagram. Related to part 117595 which is a similar union fitting for A side with 1/4 npt(m) x #5 JIC connection. This is reference number 12 in the assembly diagram. There is also a related part 117595 which is the A side version (1/4 npt(m) x #5 JIC). Both parts appear to be swivel unions for inlet connections.

Reference Manuals

• 309572 (Page 3) Power-Lock Heated Hose
• 311230 (Page 9) 2K Ultra-Lite Dispense Kits
• 311338 (Page 38) GX-8P Spray Gun, Operation Service, Repair, ( ) noptc
• 312053 (Page 32) AR-C/D Pour Gun
• 313258 (Page 9) Electric Heated Hose Power Supply Kit 256876
