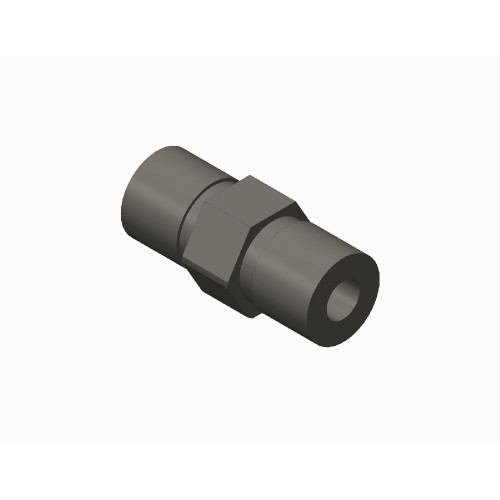

GRACO 121907 - Nipple Fitting, Hex, 1/4NPT, Stainless Steel, Swv
Specifications
- Thread: 1/4 NPT
- Material: 316 stainless steel
- Fitting Type: nipple
- Associated Kit: 826212
- Head Type: hex
Compatible Equipment
- ProMix 2KS Wall Fluid Panel
- 826212 - G3000A Accessory Kit, 4000 PSI (28 MPa, 280 Bar) Maximum Fluid Working Pressure G3000A Meter Kit, 1.0 gpm Flow Meter Assembly, LC0300, ProMix 2KS Proportioner (Acid) - Part No. 24Y548
Related Parts
- 26A119 - G3000A High Pressure Fluid Meters, 4000 PSI
- 501867 - PTFE Check Valve, 1/4 x 1/4 NPT(Mbe), 3000 PSI (207 Bar, 20.7 MPa)
- 24T894
- 121932 - Flow Meter, SS, .003-0.5 GPM
- 121933 - Flow Meter, SS, .01-1.0 GPM
- 121934 - Flow Meter, SS, .2-2.0 GPM
- 121909 - Sensor, Flowmeter, Dual Hall Eff
This is a hex nipple fitting used in the 826212 kit for flow meter applications. Quantity required is 2 pieces. Part of flow meter assembly components, reference number 2004 in exploded view diagram Reference number 61 in the parts list, quantity 1
Reference Manuals
- 308778 (Page 15) Volumetric Fluid Flow Meter
- 312760 (Page 74) PR70 and PR70v, Repair
- 312781 (Page 19) Fluid Mix Manifold
- 313599 (Page 25) Coriolis Fluid Meter
- 332338 (Page 22) 622-1A Meter-Mix Unit
