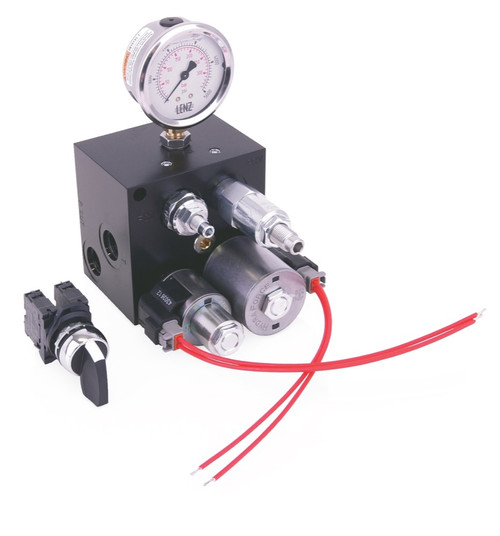

GRACO 127224 - Hydraulic Control Module w/ Switch & 3 Position, 3000 PSI

Specifications

• Max Working Pressure: 3000 PSI maximum working pressure, 0 to 2000 PSI regulated pressure range
• Material: anodized aluminum, steel, zinc plated steel, Buna-N rubber, tetrafluoro ethylene, polyester elastomer
• Voltage: 12V
• Regulated Flow Rate: 0 to 3.5 gpm (0 to 13.25 lpm)
• Temperature: -40°F to 180°F (-40°C to 82°C)
• Port Size: SAE-8
• Solenoid Power Consumption: 15-20W

Compatible Equipment

• internally pressure compensated hydraulic pump only

Related Parts

• 127225 - Hydraulic Control Module w/ Switch & 3 Position, 4-Way Valve for XD60/70/80 Series Hydraulic Powered Hose Reels, 24V

Kit Contents

• VALVE, poppet, 2 way (qty 1)
• VALVE, spool, pressure reducing (qty 1)
• VALVE, cartridge, flow regulator (qty 1)
• LATCH, mounting (qty 1)
• SWITCH, hydraulic selector (qty 1)
• BLOCK, contact (qty 2)

Designed for use with an internally pressure compensated hydraulic pump only. Do not use with a hydraulic supply without pressure relief. Referenced with solenoid H (energizes hydraulic circuit to apply power to rewind motor) and solenoid J (energizes hydraulic circuit to allow reel spool to free spool for hose extension). Center switch position is normal position and does not energize either solenoid - spool rotation is restricted in this position. This is a 12V hydraulic control kit. Part 127225 appears to be a similar 24V version with the same component configuration. Listed together with part 127225 in the same specification group

Reference Manuals

• 332630 (Page 27) XD 60, XD 70, XD 80 Power Rewind Hose Reels
• 332631 (Page 45) XD60/XD70/XD80 Power Rewind Hose Reel Repair
