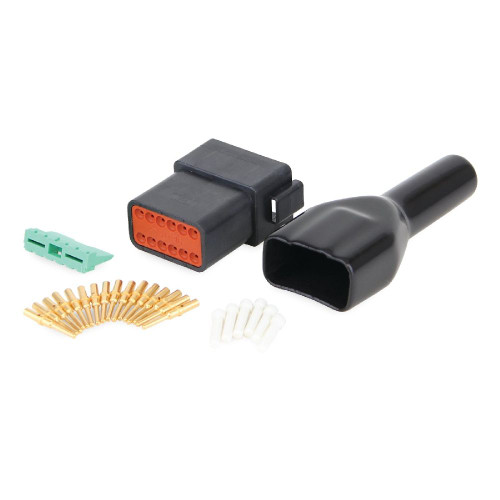

GRACO 132571 - 12-Pin DT Mating Kit for 26A889 Connector Kit, Includes Connector, Crimpable Gold 16-20 AWG-Pins, Sealing Plugs

12-pin DT male connector kit designed for field wiring connections in G3 dual-line lubrication pump systems. Provides reliable electrical connections for pump control and monitoring in industrial lubrication applications.

Specifications

• Connector Type: dt
• Pin Count: 12
• Positions: 12 pos

Features

• 12-pin DT male connector configuration
• Designed for field wiring applications
• Compatible with GLC X controller connections

Applications

• G3 dual-line lubrication pump wiring
• Industrial lubrication system control
• Field wiring connections for pump controllers

Compatible Equipment

• G3 Dual-Line Lubrication Pump
• GLC X Controller (PN 26A814)
• 26A889Connector Kit

Related Parts

• 26A814 - GLC X Controller
• 26A889 - Kit Connector DT 12 Pin Female
• 26A862 - GLC X 20 FT Cable

Kit Contents

• Connector kit components (specific part numbers not detailed on this schematic page)

Pin side of connector shown in wiring diagram. Used for making field connections to the GLC X controller system. Related to connector systems based on proximity to other connector parts in the list. This is listed as a kit connector part that is used in models 2002243, 2002244, 2002247, and 2002248. Related to part 26A889 which is also listed as 'Kit, connector' in row 44.

Reference Manuals

• GRACO - compact-dyna-star-packages-elec-conns-2021 (Page 1)
• ti01617EN (Page 1)
• 3A7633 (Page 50) Komatsu HD785 Installation Instructions
• 3A7830 (Page 17) G3 Dual-Line Lubrication Pump
• 3A8875 (Page 25) CAT Wheel Loader Centralized Lubrication System
