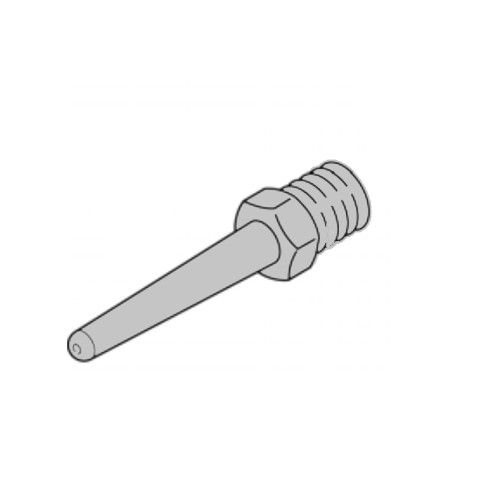

GRACO 164799 - Adapter Needle

Straight-tip metal nozzle designed for general purpose bead or drop dispensing applications with manual or automatic flow guns. Features 1/8 NPT threading for secure connection and precise orifice control for consistent material application.

Specifications

• Inside Diameter: 0.055 in (1.4 mm)
• Length: 2.12 ft (0.64 m)
• Thread: 1/8 in NPT(m)
• Material: steel
• Orifice Size: 0.055 in (1.4 mm)
• Nozzle Type: straight tip metal
• Orifice: 0.055 in (1.39 mm)
• Inlet Size: 1/8 NPT (m)

Features

• Steel construction for durability
• Male NPT threading
• Precision orifice sizing
• Extended length design
• Metal construction for durability
• Straight tip design for precise dispensing

Applications

• Extruding applications
• Precision fluid dispensing
• Industrial coating applications
• Sealants dispensing
• Adhesives application
• General purpose bead dispensing

Compatible Equipment

• GRACO dispensing systems
• NPT threaded dispensing equipment
• GRACO dispensing equipment with 1/8 NPT female connections
• Manual flow guns
• Automatic flow guns
• Hot melt guns

Related Parts

• 607665 - Nozzle, 1/8 Oriface
• 161505 - Nozzle, Flow Gun
• C17009 - Nozzle, 1/8NPT X .12 4095
• C00096 - Nozzle
• C08088 - Flow Gun Nozzle - 1/4 NPT, 0.157" ID
• C08188 - Flow Gun Nozzle - 1/4 NPT, 0.125" ID

Part of GRACO's extruding applications product line with precise orifice control for consistent dispensing Part of GRACO's straight tip metal nozzle family, grouped with other 1/8 NPT male threaded nozzles on the selection chart OK with hot melt gun. Requires 186683 adapter as noted in specifications table.

Reference Manuals

• 300639 (Page 13) Graco PRECISIONFLO LT Brochure
• 336833 (Page 92) Single Component Catalog - Buyer's Guide and Specifications
• 306708 (Page 3) Lube Equipment Couplers, Adapters, Nozzles, and Z-Swivels
• 308876 (Page 26) 1K Ultra-Lite
• 309207 (Page 1) Ratio Check Kit 233415
