Item #: 16R004
Price: $19,268.57
Call 888-654-8898
Need this Product for a Specific Application?
Use our handy finder to find the exact model for your needs.

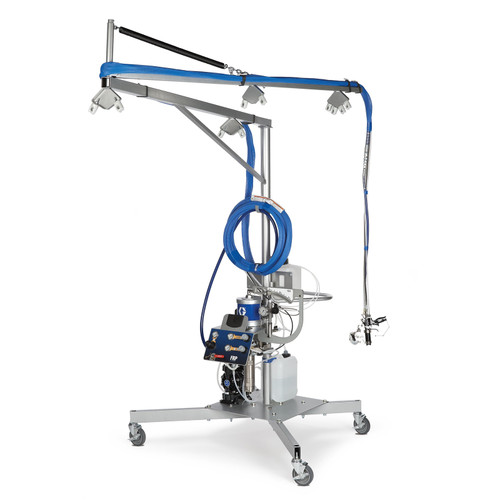

GRACO 16R004 - 13:1 Ratio Internal Mix Chop System w/ 25 ft Hose, Cart, Mast, & Boom
Complete 13:1 ratio internal mix chop system featuring cart, mast, boom, and 25-foot hose assembly. Designed for high-performance spray applications requiring precise material mixing and consistent delivery. The internal mix configuration ensures thorough material blending before application, while the chop gun provides reliable gel coat and resin dispensing.
To keep material costs low, the system has been designed so that it doesn’t need a surge bottle and a low amount of solvent and resin is needed to prime the pump. It also features a dual trigger function, allowing operators to change from wet-out to chop without removing the chopper. By purely using Graco components, that are proven in multiple industries, you will have a solution that is technologically advanced, durable and long lasting.
Additional Specifications
Specifications
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Component A Inlet Size (in) | 3/8 |
| Component B Inlet Size (in) | 1-5/16 |
| Component B Thread Gender | Male |
| Component B Thread Type | UN-2A |
| Fluid Inlet Size (in) | 3/4 |
| Fluid Inlet Thread Gender | Male |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (in) | 3/4 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| Hose Length (ft) | 25 |
| Includes | Hose, Cart, Mast, Boom |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Flow Rate (GPM) | 1.5 |
| Maximum Flow Rate (cc/min) | 5680 |
| Maximum Working Pressure (MPa) | 9 |
| Maximum Working Pressure (psi) | 1300 |
| Model | FRP |
| Overall Depth (in) | 192 |
| Overall Height (in) | 100 |
| Overall Width (in) | 144 |
| Series | IC |
| System Ratio | 13:1 |
| Type | Proportioning System |
| Wetted Material | Stainless Steel, Carbide, UHMWPE, PTFE, Acetal |
Features
Applications
Compatible Equipment
Related Parts
Kit Contents
Part of GRACO's comprehensive 13:1 ratio system family. Specifications show cartridge length of 25 (7.6), indicating metric conversion. System designed for professional use with specific air and fluid output requirements. Part of GRACO's 13:1 ratio system family. Systems without hoses do not come with guns. Fluid and air flow rates are for 70 cpm. CE and EX approved. Part of the 13:1 Internal Mix Chop system family with Cart, Mast, and Boom configuration.
Reference Manuals
