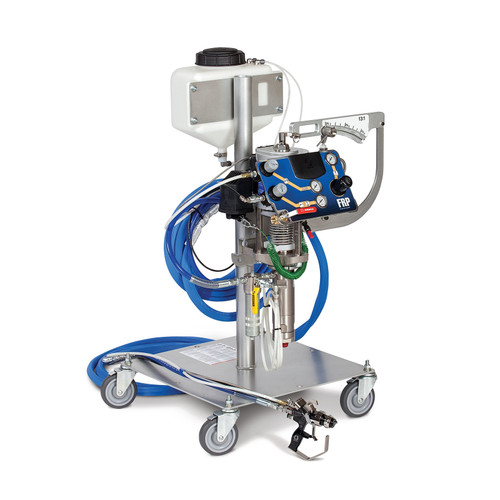

GRACO 16R012 - 13:1 Ratio External Mix Gel System w/ 50 ft Hose & Cart
Professional-grade 13:1 ratio external mix gel coating system with integrated cart and 50-foot hose for extended reach applications. Designed for maximum productivity with gel coatings, featuring external mix technology for superior spray quality and reduced material waste.
To keep material costs low, the system has been designed so that it doesn’t need a surge bottle and a low amount of solvent and resin is needed to prime the pump. It also features a dual trigger function, allowing operators to change from wet-out to chop without removing the chopper. By purely using Graco components, that are proven in multiple industries, you will have a solution that is technologically advanced, durable and long lasting.
Additional Specifications
Specifications
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Component A Inlet Size (in) | 3/8 |
| Component B Inlet Size (in) | 1-5/16 |
| Component B Thread Gender | Male |
| Component B Thread Type | UN-2A |
| Fluid Inlet Size (in) | 3/4 |
| Fluid Inlet Thread Gender | Male |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (in) | 3/4 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| Hose Length (ft) | 50 |
| Includes | Hose, Cart |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Flow Rate (GPM) | 1.5 |
| Maximum Flow Rate (cc/min) | 5680 |
| Maximum Working Pressure (MPa) | 9 |
| Maximum Working Pressure (psi) | 1300 |
| Model | FRP |
| Overall Depth (in) | 32.5 |
| Overall Height (in) | 47.75 |
| Overall Width (in) | 29.5 |
| Series | XG |
| System Ratio | 13:1 |
| Type | Proportioning System |
| Wetted Material | Stainless Steel, Carbide, UHMWPE, PTFE, Acetal |
Features
Applications
Compatible Equipment
Related Parts
Part of a comprehensive system lineup with various ratios and configurations available. Systems without hoses do not come with guns. Fluid and air flow rate for 10 cpm. Part of comprehensive 13:1 ratio external mix gel system family available in various hose lengths and configurations This is a complete gel dispensing system with external mix configuration, includes cart and 50 ft hose. Part of the 13:1 ratio external mix gel product family.
