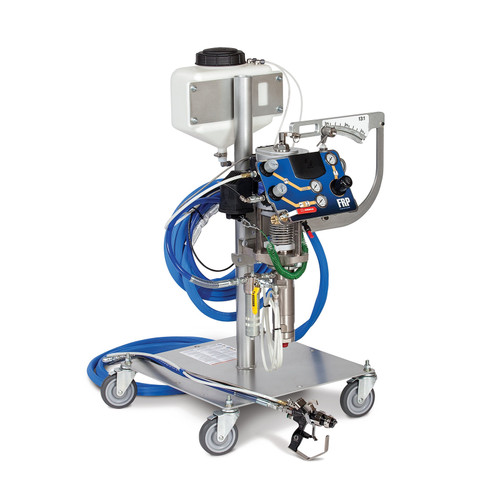

GRACO 16R047 - 13:1 Ratio Internal Mix Gel System w/ 50ft Hose & Cart, Gel Coating System
GRACO 13:1 ratio internal mix gel system with cart and 50ft hose designed for high-volume gel coat applications. Features maximum air consumption of 35 SCFM and fluid output of 1.5gpm, ideal for professional fiberglass and composite manufacturing operations.
To keep material costs low, the system has been designed so that it doesn’t need a surge bottle and a low amount of solvent and resin is needed to prime the pump. It also features a dual trigger function, allowing operators to change from wet-out to chop without removing the chopper. By purely using Graco components, that are proven in multiple industries, you will have a solution that is technologically advanced, durable and long lasting.
Additional Specifications
- Length: 50 ft (15.2 m)
- Material: gel coating system
- Max Air Consumption: 35 SCFM
- System Type: Cart/Hose Length
- Mix Type: Internal Mix
- Material Type: Gel
- Gel Or Chop: Gel
- Cart Configuration: Cart
Specifications
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Component A Inlet Size (in) | 3/8 |
| Component B Inlet Size (in) | 1-5/16 |
| Component B Thread Gender | Male |
| Component B Thread Type | UN-2A |
| Fluid Inlet Size (in) | 3/4 |
| Fluid Inlet Thread Gender | Male |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (in) | 3/4 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| Hose Length (ft) | 50 |
| Includes | Hose, Cart |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Flow Rate (GPM) | 1.5 |
| Maximum Flow Rate (cc/min) | 5680 |
| Maximum Working Pressure (MPa) | 9 |
| Maximum Working Pressure (psi) | 1300 |
| Model | FRP |
| Overall Depth (in) | 32.5 |
| Overall Height (in) | 47.75 |
| Overall Width (in) | 29.5 |
| Series | IG |
| System Ratio | 13:1 |
| Type | Proportioning System |
| Wetted Material | Stainless Steel, Carbide, UHMWPE, PTFE, Acetal |
Features
- 13:1 pump ratio for efficient material transfer
- Internal mix gel system for smooth application
- 50ft hose length for extended working range
- Maximum air consumption of 35 SCFM
- Maximum fluid output of 1.5gpm
- Vacuum capability up to 5 Torr
Applications
- Gel coat application
- Marine coating applications
- Composite manufacturing
- Fiberglass reinforced plastic production
- Fiberglass manufacturing
- Composite part production
Compatible Equipment
- 13:1 ratio spray systems
- Internal mix gel guns
- Cart and boom configurations
- 13:1 ratio pump systems
- GRACO gel coat equipment
Related Parts
- 16R002
- 16R123
- 16R117
- 16R120
- 16R044
- 16R050
- 16R053
- 16R056
- 16R059
- 16R062
Part of the 13:1 ratio internal mix gel system family with cartridge length configuration. Systems without hoses do not come with guns. Fluid exit air flow rate for 10 scfm. Part of GRACO's 13:1 ratio gel system family. Systems without hoses do not come with guns. Fluid and air flow rate specifications are for 70 cpm operation. This is a CE and EX approved model. Part of the 13:1 ratio internal mix gel system family with cart configuration and 50ft hose length.
