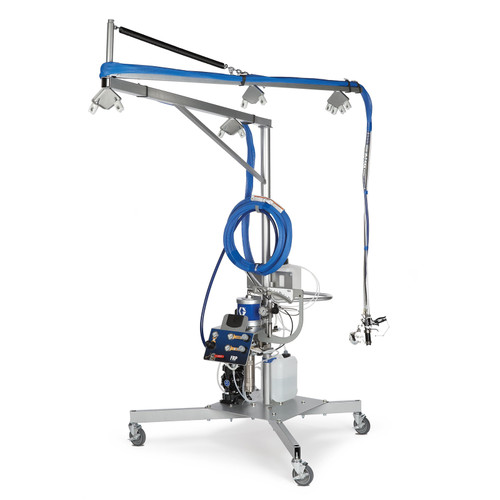

GRACO 16R059 - 13:1 Ratio Internal Mix Gel System w/ 50 ft (15.2 m) Hose, Cart, Mast, & Boom, Gel Coating Materials
13:1 ratio internal mix gel coating system complete with 50 ft hose, wheeled cart, mast, and boom assembly for professional spray applications requiring precise gel material dispensing
To keep material costs low, the system has been designed so that it doesn’t need a surge bottle and a low amount of solvent and resin is needed to prime the pump. It also features a dual trigger function, allowing operators to change from wet-out to chop without removing the chopper. By purely using Graco components, that are proven in multiple industries, you will have a solution that is technologically advanced, durable and long lasting.
Additional Specifications
Specifications
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Component A Inlet Size (in) | 3/8 |
| Component B Inlet Size (in) | 1-5/16 |
| Component B Thread Gender | Male |
| Component B Thread Type | UN-2A |
| Fluid Inlet Size (in) | 3/4 |
| Fluid Inlet Thread Gender | Male |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (in) | 3/4 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| Hose Length (ft) | 50 |
| Includes | Hose, Cart, Mast, Boom |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Flow Rate (GPM) | 1.5 |
| Maximum Flow Rate (cc/min) | 5680 |
| Maximum Working Pressure (MPa) | 9 |
| Maximum Working Pressure (psi) | 1300 |
| Model | FRP |
| Overall Depth (in) | 192 |
| Overall Height (in) | 100 |
| Overall Width (in) | 144 |
| Series | IG |
| System Ratio | 13:1 |
| Type | Proportioning System |
| Wetted Material | Stainless Steel, Carbide, UHMWPE, PTFE, Acetal |
Features
Applications
Compatible Equipment
Related Parts
Kit Contents
Part of GRACO's 13:1 ratio system family. Systems without hoses do not come with guns. Fluid and air flow rates listed are for 70 cpm operation. CE and EX approved. Part of the Cart, Mast, and Boom configuration series with 50 ft hose length.
