Item #: 16R094
Price: $40,662.86
Call 888-654-8898
Need this Product for a Specific Application?
Use our handy finder to find the exact model for your needs.

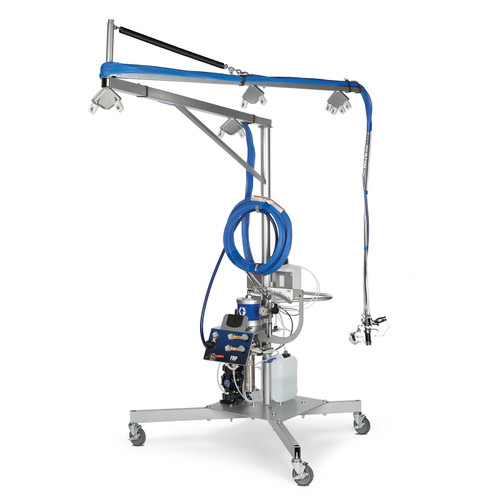

GRACO 16R094 - 13:1 Ratio External Mix Chop System w/ 50ft Hose, Cart, Mast, & Boom
GRACO 13:1 ratio external mix chop spray system designed for high-volume applications requiring precise material atomization. Features external mix technology for superior spray pattern control and chop gun configuration for enhanced material flow management. Complete system includes 50ft hose, wheeled cart, mast, and boom for maximum mobility and reach in large-scale coating operations.
To keep material costs low, the system has been designed so that it doesn’t need a surge bottle and a low amount of solvent and resin is needed to prime the pump. It also features a dual trigger function, allowing operators to change from wet-out to chop without removing the chopper. By purely using Graco components, that are proven in multiple industries, you will have a solution that is technologically advanced, durable and long lasting.
Additional Specifications
Specifications
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Component A Inlet Size (in) | 3/8 |
| Component B Inlet Size (in) | 1-5/16 |
| Component B Thread Gender | Male |
| Component B Thread Type | UN-2A |
| Fluid Inlet Size (in) | 3/4 |
| Fluid Inlet Thread Gender | Male |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (in) | 3/4 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| Hose Length (ft) | 50 |
| Includes | Hose, Cart, Mast, Boom |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Flow Rate (GPM) | 1.5 |
| Maximum Flow Rate (cc/min) | 5680 |
| Maximum Working Pressure (MPa) | 9 |
| Maximum Working Pressure (psi) | 1300 |
| Model | FRP |
| Overall Depth (in) | 192 |
| Overall Height (in) | 100 |
| Overall Width (in) | 144 |
| Series | XC |
| System Ratio | 13:1 |
| Type | Proportioning System |
| Wetted Material | Stainless Steel, Carbide, UHMWPE, PTFE, Acetal |
Features
Applications
Compatible Equipment
Related Parts
Kit Contents
Part of GRACO's 13:1 ratio system family. Listed in the Cart, Mast and Boom/Hose Length configuration table. Part of GRACO's comprehensive 13:1 ratio spray system family. Systems without hoses do not come with guns. Fluid and air flow rates specified for 70 cpm operation. This is part of the Cart, Mast, and Boom configuration series with External Mix Chop gun type and 50 ft hose
Reference Manuals
