Item #: 16R129
Price: $21,120.00
Call 888-654-8898
Need this Product for a Specific Application?
Use our handy finder to find the exact model for your needs.

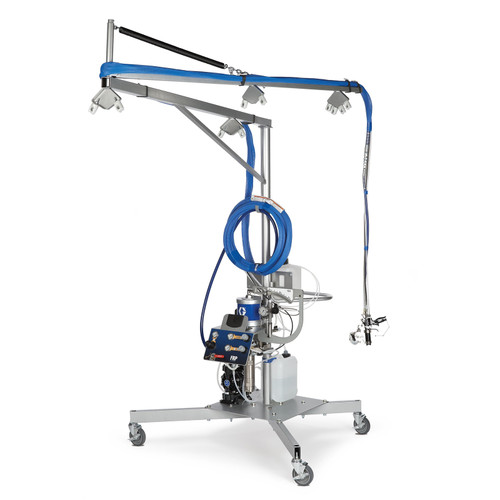

GRACO 16R129 - 13:1 Ratio Internal Mix Chop System w/ 50 ft (15.2 m) Hose, Cart, Mast, & Boom
13:1 ratio internal mix chop gun system designed for chopper gun applications with fiberglass reinforcement. Features internal mixing technology for consistent material application with maximum air consumption of 35 SCFM and fluid output of 1.5gpm at 5 lpm.
To keep material costs low, the system has been designed so that it doesn’t need a surge bottle and a low amount of solvent and resin is needed to prime the pump. It also features a dual trigger function, allowing operators to change from wet-out to chop without removing the chopper. By purely using Graco components, that are proven in multiple industries, you will have a solution that is technologically advanced, durable and long lasting.
Additional Specifications
Specifications
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Component A Inlet Size (in) | 3/8 |
| Component B Inlet Size (in) | 1-5/16 |
| Component B Thread Gender | Male |
| Component B Thread Type | UN-2A |
| Fluid Inlet Size (in) | 3/4 |
| Fluid Inlet Thread Gender | Male |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (in) | 3/4 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| Hose Length (ft) | 50 |
| Includes | Hose, Cart, Mast, Boom |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Flow Rate (GPM) | 1.5 |
| Maximum Flow Rate (cc/min) | 5680 |
| Maximum Working Pressure (MPa) | 9 |
| Maximum Working Pressure (psi) | 1300 |
| Model | FRP |
| Overall Depth (in) | 192 |
| Overall Height (in) | 100 |
| Overall Width (in) | 144 |
| Series | IC |
| System Ratio | 13:1 |
| Type | Proportioning System |
| Wetted Material | Stainless Steel, Carbide, UHMWPE, PTFE, Acetal |
Features
Applications
Compatible Equipment
Related Parts
Kit Contents
Part of the 13:1 ratio system family with various cartridge length and configuration options available Part of GRACO's comprehensive 13:1 ratio system family. Systems without hoses do not come with guns. Fluid and air flow rates are for 70 cpm operation. This is part of the Cart, Mast, and Boom configuration series with 50 ft hose length. CE and EX approved indicated by star marking.
Reference Manuals
GRACO 16R129 - 13:1 Ratio Internal Mix Chop System w/ 50 ft (15.2 m) Hose, Cart, Mast, & Boom
13:1 ratio internal mix chop gun system designed for chopper gun applications with fiberglass reinforcement. Features internal mixing technology for consistent material application with maximum air consumption of 35 SCFM and fluid output of 1.5gpm at 5 lpm.
To keep material costs low, the system has been designed so that it doesn’t need a surge bottle and a low amount of solvent and resin is needed to prime the pump. It also features a dual trigger function, allowing operators to change from wet-out to chop without removing the chopper. By purely using Graco components, that are proven in multiple industries, you will have a solution that is technologically advanced, durable and long lasting.
Additional Specifications
Specifications
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Component A Inlet Size (in) | 3/8 |
| Component B Inlet Size (in) | 1-5/16 |
| Component B Thread Gender | Male |
| Component B Thread Type | UN-2A |
| Fluid Inlet Size (in) | 3/4 |
| Fluid Inlet Thread Gender | Male |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (in) | 3/4 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| Hose Length (ft) | 50 |
| Includes | Hose, Cart, Mast, Boom |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Flow Rate (GPM) | 1.5 |
| Maximum Flow Rate (cc/min) | 5680 |
| Maximum Working Pressure (MPa) | 9 |
| Maximum Working Pressure (psi) | 1300 |
| Model | FRP |
| Overall Depth (in) | 192 |
| Overall Height (in) | 100 |
| Overall Width (in) | 144 |
| Series | IC |
| System Ratio | 13:1 |
| Type | Proportioning System |
| Wetted Material | Stainless Steel, Carbide, UHMWPE, PTFE, Acetal |
Features
Applications
Compatible Equipment
Related Parts
Kit Contents
Part of the 13:1 ratio system family with various cartridge length and configuration options available Part of GRACO's comprehensive 13:1 ratio system family. Systems without hoses do not come with guns. Fluid and air flow rates are for 70 cpm operation. This is part of the Cart, Mast, and Boom configuration series with 50 ft hose length. CE and EX approved indicated by star marking.
Reference Manuals
