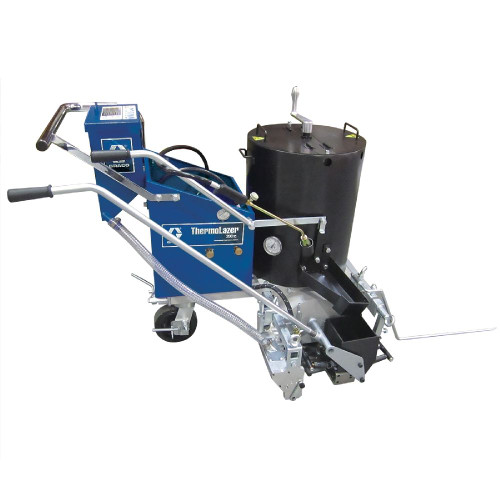

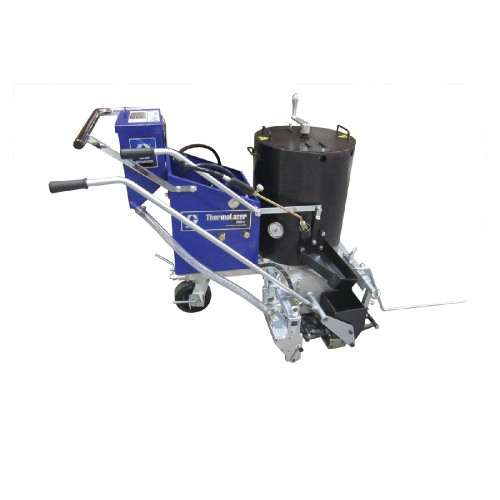

GRACO 17A337 - ThermoLazer 200TC Thermoplastic Striping System, 8" FlexDie

FlexDie thermoplastic striping die for the ThermoLazer 200TC system, designed for 8 inch (20 cm) wide striping applications. Part of GRACO's high-quality, compact ThermoLazer line ideal for contractors with premelting systems, delivering excellent line quality with deep-die, all-steel construction and built-in adjustability.

The ThermoLazer 200TC is the premiere solution for smaller thermoplastic striping jobs. The FlexDie is built with the same precision and functionality as its big brother, the SmartDie II. Solid steel construction, built-in die adjustment and direct flames will give you great lines every time.

The smaller, more portable ThermoLazer 200TC is ideal for striping contractors who already have premelt kettle systems.

• FlexDie

  • Delivers excellent line quality with exclusive deep-die, all steel construction and a no-tools change out design
• 200 lb Material Kettle
  • Easy-to-fill cylindrical kettle allows for precise heating of thermoplastic material, and its no-tool change-out design lets you switch colors fast
• 40 lb Bead Hopper
  • Perfectly matched to the material kettle with a superior flow design
• Direct Heat System
  • Direct flames and an on-board hand torch deliver maximum heat, resulting in maximum material flow
• Tri-Wheel System
  • Dual solid front and single solid rear wheels provide smooth, quiet operation
• Adjustable Operator Handle
  • Handle easily adjusts to multiple heights
• Adjustable Front Pointer
  • Easily adjusts for all size dies for following all marks and creating straight lines

Additional Specifications

• Material: all-steel construction
• Stripe Width: 8 in (20 cm)
• Die Width: 8 in (20 cm)
• Die Type: FlexDie
• Compatible System: ThermoLazer 200TC

Specifications

Features

• FlexDie system for quick color changes without tools
• Deep-die, all-steel construction with built-in adjustability
• Direct flames keep die ready for consistent performance
• Easy to fill drum-style kettle compatibility
• No hot oil required - air design reduces melt times
• FlexDie technology for consistent stripe application

Applications

• Thermoplastic striping
• Road marking and line striping
• Contractor applications with premelting systems
• 8 inch wide striping jobs
• Road striping and pavement marking
• Highway line marking

Compatible Equipment

• ThermoLazer 200TC
• ThermoLazer 200TC System

Related Parts

• 17A262
• 17A333
• 17A334
• 17A335
• 17A338
• 17A334 - 5 in FlexDie
• 17A335 - 6 in FlexDie
• 17A336 - 7 in FlexDie
• 17A338 - 9 in FlexDie
• 17A339 - 10 in FlexDie

This is a FlexDie component for the ThermoLazer 200TC system, allowing quick color changes without tools. The system is designed for contractors needing high-quality, compact handling with kettles capable of holding up to 200 lbs of material. Part of the FlexDie family for ThermoLazer 200TC system. The 200TC system has a 200 lb melt chamber capacity and uses a corkscrew auger for material mixing.

Reference Manuals

• 344507 (Page 4)
