GRACO 17A339 - ThermoLazer 200TC Thermoplastic Striping System, 10" FlexDie

10-inch FlexDie for ThermoLazer 200TC thermoplastic striping system. The FlexDie system enables contractors to deliver excellent line quality with deep-die, all steel construction and built-in adjustability for creating great lines even in cool conditions. Features direct flames to keep the die ready for consistent material flow and precise line application.

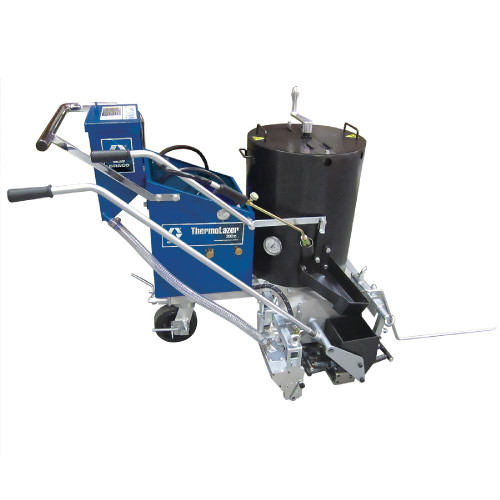

Graco changed the world of thermoplastic striping with ThermoLazer, and we've done it again with the ThermoLazer 200TC. The premiere solution for smaller thermoplastic striping jobs. Solid steel construction, built-in die adjustment and direct flames will give you great lines every time.

The smaller, more portable ThermoLazer 200TC is ideal for striping contractors who already have premelt kettle systems.

• 200 lb Material Kettle

  • Easy-to-fill cylindrical kettle allows for precise heating of thermoplastic material, and its no-tool change-out design lets you switch colors fast

• 40 lb Bead Hopper

  • Perfectly matched to the material kettle with a superior flow design

• Direct Heat System

  • Direct flames and an on-board hand torch deliver maximum heat, resulting in maximum material flow

• Tri-Wheel System

  • Dual solid front and single solid rear wheels provide smooth, quiet operation

• Adjustable Operator Handle

  • Handle easily adjusts to multiple heights

• Adjustable Front Pointer

  • Easily adjusts for all size dies for following all marks and creating straight lines

Additional Specifications

• Material: all steel construction
• Die Width: 10 in (25 cm)
• Kettle Capacity: 200 lbs
• Die Type: FlexDie
• Compatible System: ThermoLazer 200TC

Specifications

Features

• FlexDie system for excellent line quality
• Deep-die, all steel construction
• Built-in adjustability
• Direct flames keep die ready
• Works with 200 lb material kettle
• Delivers great lines even in cool conditions

Applications

• Thermoplastic striping
• Road marking
• Parking lot striping
• Contractor applications with premelter systems
• Road striping and traffic marking
• Thermoplastic pavement marking

Compatible Equipment

• ThermoLazer 200TC system
• 200 lb melt chamber capacity systems
• Corkscrew auger mixing systems

Related Parts

• 17A262
• 17A333
• 17A334
• 17A335
• 17A337
• 17A338
• 24U282 - 4 in FlexDie
• 17A334 - 5 in FlexDie
• 17A335 - 6 in FlexDie
• 17A336 - 7 in FlexDie

Part of the ThermoLazer 200TC high-quality, compact handliner ideal for contractors with premelter systems. System uses FlexDie technology with direct heat to deliver great lines. Part of the ThermoLazer 200TC system family. System includes 200 lb melt capacity, up to 2.5 hour melt time, and 40 lb bead hopper capacity.

Reference Manuals

• 344507 (Page 4)
