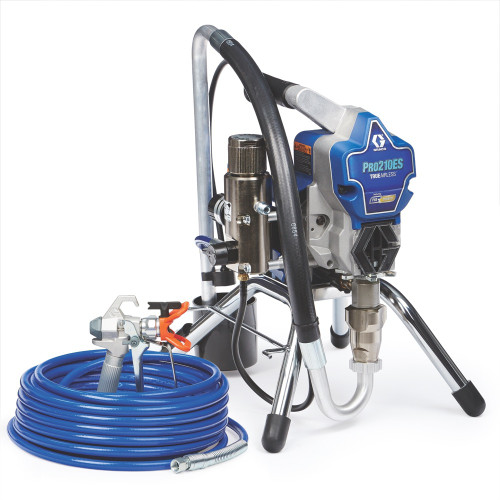

GRACO 17D163 Pro210ES Electric Airless Sprayer, Stand
Painting contractors and remodelers choose the Pro210ES for tackling jobs like rental and residential properties and small commercial buildings. The proven Endurance pump delivers maximum life and supports a .021-inch tip to spray heavier materials and hot solvents such as solvent-based lacquer.
The ProConnect System allows you to replace the pump on the job, eliminating downtime and keeping you spraying while extending the life of the sprayer. The welded, chrome-plated steel frame enhances durability on the jobsite.
Compatible Equipment
Reference Manuals
Specifications
| Amperage (A) | 13 |
| Compatible Replacement Pump | 17C721 |
| Compatible Tip Size (in) | 0.009, 0.011, 0.013, 0.015, 0.017, 0.019, 0.021 |
| Engine Size (HP) | 1.0 |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Thread Type | NPSM |
| Frame Configuration | Stand |
| Includes | SG3 Spray Gun, TrueAirless 515 Spray Tip, Tip Guard, 1/4 in x 50 ft DuraFlex Hose, TSL 4 oz, Quick Start-Up Guide |
| Maximum Flow Rate (GPM) | 0.47 |
| Maximum Sound Pressure Level (dB(A)) | 90 |
| Maximum Tip Size (in) | 0.021 |
| Maximum Tip Size 1 Gun (in) | 0.021 |
| Maximum Working Pressure (MPa) | 20.7 |
| Maximum Working Pressure (psi) | 3000 |
| Minimum Generator Power (W) | 3000 |
| Model | Graco |
| Motor Type | DC |
| Outlet Paint Filter | 60 Mesh Stainless Steel Screen |
| Overall Height (in) | 18.5 |
| Overall Length (in) | 16 |
| Overall Width (in) | 14 |
| Phase | 1 |
| Power Rating (HP) | 1.0 |
| Power Rating (W) | 745.7 |
| Power Rating (kW) | 0.75 |
| Power Source | Electric |
| Pressure Control Type | Mechanical Pressure Control |
| Pump Mount Type | ProConnect |
| Pump Rod Type | Chromex |
| Pump Sleeve Material | Hardened Steel |
| Pump Type | Endurance |
| Series | Pro210ES |
| Standards Met | Certified to CAN/CSA C22.2 No.68, Conforms to UL1450, ETL Listed, NOM-003-SCFI, NMX-J-521/1 |
| Type | Airless Sprayer |
| Voltage (V) | 120 |
| Volume Per Cycle (cycles/gal) | 700 |
| Weight (lb) | 34 |
| Wetted Material | Acetal, Aluminum, Fluoroelastomer, Leather, Nylon, PTFE, Polyethylene, Stainless Steel, Tungsten Carbide, UHMWPE, Urethane, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel |
| Amperage (A) | 13 |
| Compatible Replacement Pump | 17C721 |
| Engine Size (HP) | 1.0 |
| Fluid Outlet Size (cm) | 0.635 |
| Fluid Outlet Size (mm) | 6.35 |
| Fluid Outlet Thread Type | NPSM |
| Frame Configuration | Stand |
| Includes | SG3 Spray Gun, TrueAirless 515 Spray Tip, Tip Guard, 1/4 in x 50 ft DuraFlex Hose, TSL 4 oz, Quick Start-Up Guide |
| Maximum Flow Rate (L/min) | 1.8 |
| Maximum Sound Pressure Level (dB(A)) | 90 |
| Maximum Tip Size (cm) | 0.0533 |
| Maximum Tip Size (mm) | 0.5334 |
| Maximum Tip Size 1 Gun (cm) | 0.0533 |
| Maximum Tip Size 1 Gun (mm) | 0.5334 |
| Maximum Working Pressure (MPa) | 20.7 |
| Maximum Working Pressure (bar) | 207 |
| Maximum Working Pressure (kPa) | 20700 |
| Minimum Generator Power (W) | 3000 |
| Model | Graco |
| Motor Type | DC |
| Outlet Paint Filter | 60 Mesh Stainless Steel Screen |
| Overall Height (cm) | 47 |
| Overall Height (mm) | 470 |
| Overall Length (cm) | 40.6 |
| Overall Length (mm) | 406 |
| Overall Width (cm) | 35.6 |
| Overall Width (mm) | 356 |
| Phase | 1 |
| Power Rating (HP) | 1.0 |
| Power Rating (W) | 745.7 |
| Power Rating (kW) | 0.75 |
| Power Source | Electric |
| Pressure Control Type | Mechanical Pressure Control |
| Pump Mount Type | ProConnect |
| Pump Rod Type | Chromex |
| Pump Sleeve Material | Hardened Steel |
| Pump Type | Endurance |
| Series | Pro210ES |
| Standards Met | Certified to CAN/CSA C22.2 No.68, Conforms to UL1450, ETL Listed, NOM-003-SCFI, NMX-J-521/1 |
| Type | Airless Sprayer |
| Voltage (V) | 120 |
| Weight (kg) | 15 |
| Wetted Material | Acetal, Aluminum, Fluoroelastomer, Leather, Nylon, PTFE, Polyethylene, Stainless Steel, Tungsten Carbide, UHMWPE, Urethane, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel |
