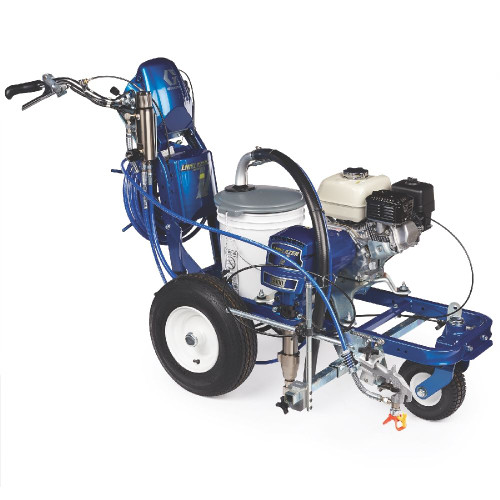

GRACO 17H447 - LineLazer 130HS Standard Series Gas Hydraulic Airless Line Striper, 1 Manual Gun, 3300 PSI

Specifications

• Length: 68.25 in. / 173.36 cm
• Max Working Pressure: 3300 PSI (22.8 MPa, 228 bar)
• Material: PTFE, Nylon, polyurethane, V-Max leather, tungsten carbide, stainless steel, chrome plating, nickel-plated carbon steel, ceramic
• Application: line striping materials
• Use Type: professional use only
• Environment: outdoor use only
• Gun Configuration: 1 Manual Gun
• Engine Hp: 4.0 HP gasoline
• Engine: Honda GX120cc
• Maximum Free Flow Delivery: 1.3 gpm / 4.9 lpm
• Cycles Per Gallon: 85 cpg / 22.5 cpl
• Hydraulic Reservoir Capacity: 1.25 gal / 4.73 l
• Hydraulic Pressure: 1825 PSI / 124 bar
• Maximum Tip Size 1 Gun: 0.037
• Maximum Tip Size 2 Guns: 0.029
• Sound Power: 110 dBa per ISO 3744
• Sound Pressure: 96 dBa measured at 3.1 feet (1m)
• Vibration Left Hand: 2.90 m/sec²
• Vibration Right Hand: 2.83 m/sec²
• Inlet Paint Strainer: 16 mesh (1190 micron) stainless steel screen, reusable
• Outlet Paint Filter: 50 mesh (250 micron) stainless steel screen, reusable
• Pump Inlet Size: 1 in. npsm(m)
• Fluid Outlet Size: 3/8 NPT(F)
• Height: 44.5 in. / 113.03 cm
• Width: 34.25 in. / 87.0 cm
• Weight: 263 lb / 119 kg

Compatible Equipment

• LineLazer V 130HS Airless Line Stripers
• 4.0 HP gasoline engine (part 120590 - Engine, Gas, 4.0 HP, Hnda), LineLazer V 130HS series

Related Parts

• 17H448 - Standard 2 Manual Guns
• 25P336 - Standard 1 Manual Gun
• 25P337 - Standard 2 Manual Guns
• 2012212 - Standard 1 Manual Gun
• 120590 - Engine, Gas, 4.0 HP, Hnda

For the application of line striping materials. Not for use in explosive atmospheres or hazardous locations. Use only genuine GRACO replacement parts. 17H447 appears to be a model number that uses the 4.0 HP gasoline engine, mentioned alongside 17H448 model Gas hydraulic airless line striper with Honda GX120cc engine. Vibration measured per ISO 5349 based on 8 hr daily exposure. Weight listed is dry, without packaging.

Reference Manuals

• 3A3391 (Page 1) LineLazer V 200HS Airless Line Stripers, Parts
• 3A3392 (Page 1) LineLazer V 130HS Airless Line Stripers
