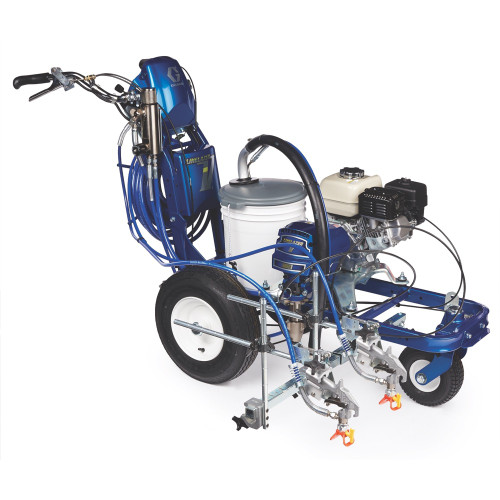

GRACO 17H454 - LineLazer V 5900 Standard Series Gas Airless Line Striper, 1 Manual Gun, 3300 PSI

Specifications

• Length: 68.75 in. unpackaged (174.63 cm), 73.50 in. packaged (186.69 cm) with platform down
• Max Working Pressure: 3300 PSI (228 bar, 22.8 MPa) maximum working pressure
• Material: PTFE, Nylon, polyurethane, V-Max, UHMWPE, fluoroelastomer, acetal, leather, tungsten carbide, stainless steel, chrome plating, nickel-plated carbon steel, ceramic
• Series: B
• Gun Configuration: Standard 1 Manual Gun
• Product Line: LineLazer V 5900
• Height: 44.5 in. unpackaged (113.03 cm), 52.5 in. packaged (133.35 cm) with handle bar down
• Width: 34.25 in. unpackaged (86.99 cm), 37.0 in. packaged (93.98 cm)
• Weight: 250 lbs unpackaged (113 kg), 317 lbs packaged (144 kg) - dry, no paint
• Power Rating: 5.5 HP @ 3600 rpm (4.1 kW @ 3600 rpm)
• Maximum Delivery: 1.6 gpm (6.0 lpm)
• Sound Power: 97.6 dBa per ISO 9614
• Sound Pressure: 87.1 dBa per ISO 9614
• Vibration Hand Arm Left: 3.65 m/s² (8 hours daily exposure)
• Vibration Hand Arm Right: 3.72 m/s² (8 hours daily exposure)
• Vibration Whole Body: 0.4 m/s² (8 hours daily exposure)
• Maximum Tip Size 1 Gun: .043
• Maximum Tip Size 2 Gun: .029
• Inlet Paint Strainer: 16 mesh (1190 micron)
• Outlet Paint Strainer: 50 mesh (297 micron)
• Pump Inlet Size: 1 in. NSPM (m)
• Pump Outlet Size: 3/8 NPT (F)
• Electrical Capacity: 84 W @ 3600 rpm
• Battery: 12V, 22Ah, Sealed lead acid, Deep cycle

Compatible Equipment

• LineLazer V 5900
• Standard Series equipment using this wiring configuration
• LineLazer V 5900 Standard Series

Related Parts

• 17H455
• 17K580
• 17H456
• 17K636
• 17H457
• 17K581
• 17H458
• 25P330
• 25P331
• 25P326

This is a complete LineLazer V 5900 unit with standard configuration featuring 1 manual gun. It's part of Series B and has CE marking. All auto guns can be actuated manually according to the note on the page. Part number appears in wiring diagram title as compatible Standard Series model, but no detailed specifications are provided on this page This is a complete gas airless line striper unit. Model 17H454 and 17H455 share the same specifications according to this technical specifications table.

Reference Manuals

• 3A3388 (Page 2)
• 3A3389 (Page 2)
