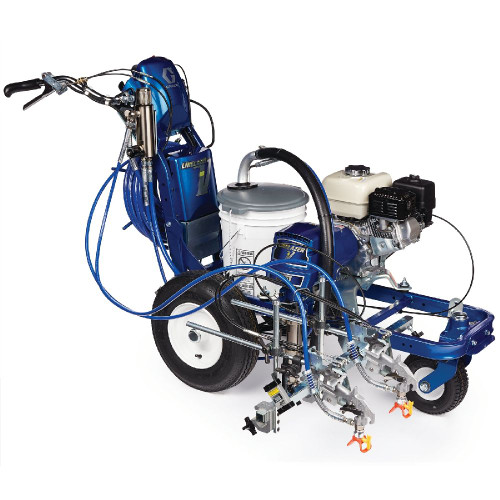

GRACO 17H457 - LineLazer V 5900 HP Automatic Series Gas Airless Line Striper, 1 Auto Gun, 1 Manual Gun, 3300 PSI

LineLazer V 5900 HP Automatic Series gas airless line striper with dual gun configuration featuring one automatic gun and one manual gun. This fully automated striping solution eliminates layout work and skip lines with advanced features like Auto-Layout II system, LazerGuide 2000 laser-layout system, and onboard battery power for enhanced productivity and accuracy.

When it’s time for 1 or 2-gun airless line striping performance with extra power, the LineLazer V 5900 HP Automatic Series striper is an excellent choice. These durable striping machines deliver higher performance and consistent lines for all your basic striping needs.

The HP Automatic Series adds enhanced features that provide contractors automatic line production capability, including skip-lines, as well as real-time job performance data for proof-of-job requirements.

• Automatic Paint Gun System

  • Automatically Stripe Skip-Lines
  • Reduce operator fatigue — push button line production
  • Quality solenoid driven system
• Auto-Layout II

  • Simplify Parking Lot Layout
  • SmartControl measures while you walk and puts down pre-marks
  • No need for measuring tape, string lines or aerosol cans
  • Cuts your layout time in half
• LiveLook Display with SmartControl

  • Striping Information At-A-Glance
  • Track, measure and control every aspect of your job
  • Accessible proof-of-job data from the J-Log System with USB Download
  • Consistent spraying pressure for perfect lines
• J-Log System with USB Download

  • Valuable Job Information
  • Proof of job = More striping opportunities.
  • USB download capability allows you to capture and save all job data
• Honda GX Engine

  • Reliable, Easy-to-Start Power
  • Contractor-preferred — excellent power and proven reliability
  • Oil Alert shuts down engine to prevent damage if oil level drops too low
• EasyMark Gun Adjustment System

  • Easy Gun Adjustments
  • Perfect gun alignment every time with easy-to-use guide mark system
  • 2-gun capability with QuikSelect gun selector
• EZ Align Wheel System

  • Perfect Striper Tracking
  • Simple front wheel alignment, no special tools needed
• DualComfort Handlebar System

  • Easy Handlebar Adjustment
• Endurance Chromex Pump

  • Reliable, Long-Life Pump
  • Industry-best pump performance — field-proven design
  • Handle the most demanding materials with long-life rod treatment
  • 4X harder than ordinary chrome
• Additional Features
  • QuikSelect Gun Selector
  • Easy Out Pump Filter
  • LazerGuide 1700 Start/Stop Laser

Additional Specifications

• Flow Rate: 1.60 gpm maximum
• Max Working Pressure: 3300 PSI maximum tip size 0.043
• Maximum Psi: 3300
• Maximum Gpm: 1.60
• Engine: Honda GX Engine
• Weight: 250 lbs Standard Unit, 266 lbs HP Automatic Units
• Hose Size: 3/8 in x 50 ft
• Gun Support: 1 Gun: 0.043, 2 Guns: 0.029

Specifications

Features

• Automatic Paint Gun System - reduces operator fatigue with push button line production
• Auto-Layout II system - cuts layout time in half
• LazerGuide 1700 Start/Stop Laser
• Onboard Battery Power - 12V battery stays charged when unit is running
• J-Log System with USB Download for job tracking
• Quality solenoid-driven system

Applications

• Advanced striping jobs requiring layout work
• Skip line applications
• Parking lots
• Intersections
• Athletic fields
• Professional line striping operations

Compatible Equipment

• LazerGuide 2000 Laser-Layout System
• LineLazer V 5900 series
• HP Automatic gun systems
• HP Auto Series

Related Parts

• 17H452
• 17H453
• 17J804
• 17J805
• 17H802
• 17J803
• 17H448
• 17H450
• 17H454
• 17H455

Part of the HP Automatic Series with advanced automation features for reduced setup time and increased productivity. Includes all standard LineLazer V 3900/5900 features plus automatic striping capabilities. Part of the LineLazer V 5900 HP Automatic series. Features SmartControl technology and 0.66 gallon fuel capacity. Includes both 1 Automatic and 1 Manual gun configuration. This part appears in the HP Auto Series wiring diagram section of the manual. Related to electrical/wiring components for HP Auto Series equipment.

Reference Manuals

• 344385 (Page 9) LineLazerBrochure (ANZ ONLY)
• 3A3388 (Page 2) LineLazer V 3900, 5900 Airless Line Stripers Standard Series and High Production (HP) Auto Series
• 3A3389 (Page 2) LineLazer V 3900, 5900 Airless Line Stripers Standard Series and High Production (HP) Auto Series, Parts
