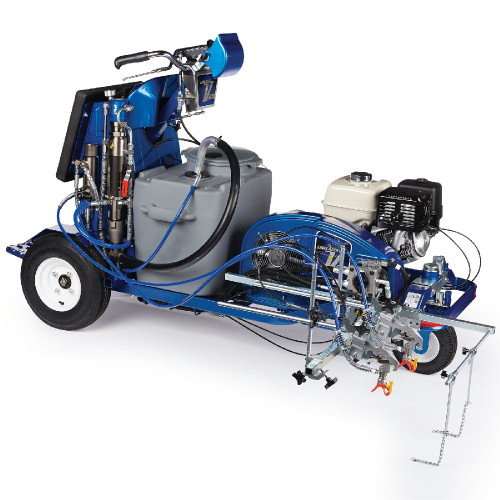

GRACO 17H466 - LineLazer V 250SPS HP Automatic Series Self-Propelled Gas Hydraulic Airless Line Striper, 1 Auto Gun, 3300 PSI

The LineLazer V 250SPS is a professional self-propelled gas hydraulic airless line striper designed for high-performance line marking applications. This single automatic gun configuration delivers precise, consistent striping with advanced features like AVRS, EasyMark system, and LiveLook display for enhanced productivity and line quality.

Specifications

• Flow Rate: 9.5 L/min (2.5 gpm)
• Length: 73.5 in. (186.7 cm) with platform down
• Max Working Pressure: 227 bar (3300 PSI)
• Material: PTFE, Nylon, polyurethane, V-Max, UHM-WPE, fluoroelastomer, acetal, leather, tungsten carbide, stainless steel, chrome plating, nickel-plated carbon steel, ceramic
• Max Tip Size: 0.055"
• Motor Rating: 390cc Electric Start
• Weight: 302 kg (666 lbs)
• Guns: 1
• Pressurized Bead System: No
• Maximum Operating Speed: 10 mph (16 kph)
• Model Type: LineLazer V 250SPS Self-Propelled Line Striper
• Height With Handle Down: 55.7 in. (141.5 cm) unpackaged, 63.5 in. (161.3 cm) packaged
• Width: 33.0 in. (83.8 cm) unpackaged, 45 in. (114.3 cm) packaged
• Weight Dry: 666 lbs (302.1 kg) unpackaged, 769 lbs (348.8 kg) packaged
• Power Rating: 11.9 HP @ 3600 rpm (Honda), 8.8 kW @ 3600 rpm (Honda)
• Maximum Delivery: 2.5 gpm (9.5 lpm)
• Maximum Tip Sizes: 1 gun: .055, 2 gun: .039, 3 gun: .033
• Hydraulic Reservoir Capacity: 1.25 gallons (4.73 liters)
• Maximum Hydraulic Pressure: 1825 PSI (124 bar)
• Maximum Forward Speed: 10 mph (16 kph)
• Maximum Reverse Speed: 6 mph (9.7 kph)
• Electrical Capacity: 14 A @ 3600 rpm
• Starting Battery: 12V, 33Ah, Sealed lead acid
• Sound Power: 105.9 dBa per ISO 3744
• Sound Pressure: 89.1 dBa at 3.3 feet (1m)
• Vibration Hand Arm: 2.4 m/s² (8 hours daily exposure)
• Vibration Whole Body: 0.4 m/s² (8 hours daily exposure)
• Inlet Paint Strainer: 16 mesh (1190 micron)
• Outlet Paint Strainer: 50 mesh (297 micron)
• Pump Inlet Size: 1 in. NSPM (m)
• Pump Outlet Size: 3/8 NPT (F)

Features

• Hydraulic Endurance pump
• AVRS (Automatic Variable Relief System)
• EasyMark system for simplified operation
• LiveLook display for real-time monitoring
• Quick Select Gun Selector
• Rear-gun mounted design

Applications

• Professional line striping
• Parking lot marking
• Road marking
• Athletic field striping
• Commercial striping applications

Compatible Equipment

• LL5321, LL5425, LL5627 tips
• RAC V (243161 - Rac 5 Handtite Tip Guard, 7/8", 7/8" OD) guard
• Flex Plus gun (248157 - Flex Plus Airless Spray Gun, 2 Finger Trigger, RAC 5 LineLazer)
• 3/8" x 3.6 m hose (191239 - Linelazer Hose, 3/8" x 11' 10", 3/8" OD, 3/8" ID, 230 Bar)
• 1/4" x 2 m hose (245798 - Hose Repair Kit, 1/4" ID, 230 Bar), LineLazer V 250SPS and 250DC Self-Propelled Line Striper

Related Parts

• 17H467
• 17H471
• 17H472
• 17H468
• 17H469
• 17H473
• 17H474, 17H471V, 17H474V, 17H467V

This is the single automatic gun configuration in the LineLazer V 250 series. Uses 50 mesh pump filter and 118 ml TSL. For the application of line striping materials. For professional use only. For outdoor use only. Not for use in explosive atmospheres or hazardous locations. This is a complete LineLazer V 250SPS self-propelled line striper unit. Model 17H466 appears to be one of two model variants, with 17H467 being the related model.

Reference Manuals

• ENEU_LL250SPS_DC-C (Page 2)
• 3A3393 (Page 1) LineLazer V 250SPS and 250DC Self-Propelled Line Striper
• 3A3394 (Page 1) LineLazer V 250SPS and 250DC Self-Propelled Line Striper, Repair/Parts
• 3A6981 (Page 1) LineLazer V 250SPS and 250DC, Line Striper
