Item #: 17K263
Price: $1,422.86
Call 888-654-8898
Need this Product for a Specific Application?
Use our handy finder to find the exact model for your needs.

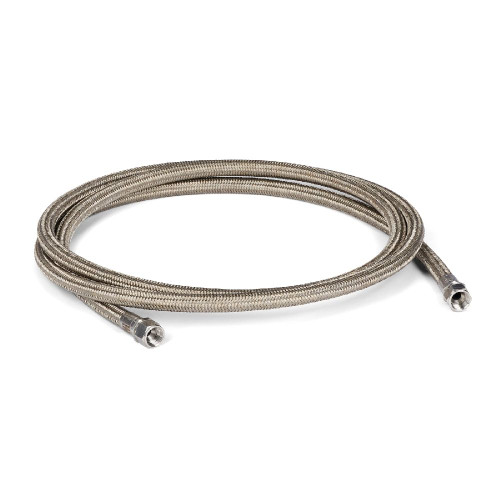

GRACO 17K263 - (3.0 M) Stainless Steel Braided PTFE Ambient Hose, 401" x 10 ft, No. 8 (0./ 10.2 mm ID), 3000 PSI
10FT - 1/2 in PTFE Core SST Braided Hose - 3000 PSI (21 Mpa,207 bar) WP
Graco ambient temperature hoses bring reliable performance to Sealant and Adhesive dispensing installations. Whether your material is moisture sensitive, corrosive, or inert, Graco hoses have the materials of construction and build-quality to hold up to all your application’s needs.
Additional Specifications
Specifications
| Hose Diameter (in) | 0.401 |
| Hose Diameter (mm) | 10.2 |
| Hose Heating Type | Ambient |
| Hose Length (ft) | 10 |
| Inside Diameter (in) | 0.401 |
| JIC Size | JIC 08 |
| Material | PTFE Lined Stainless Steel Braid |
| Maximum Temperature (°F) | 212 |
| Maximum Working Pressure (MPa) | 27.6 |
| Maximum Working Pressure (psi) | 4000 |
| Thread Gender | Female |
| Thread Size | 3/4-16 |
| Thread Type | 37 degree JIC Swivel |
| Type | Hose |
| Voltage (V) | N/A |
Compatible Equipment
Related Parts
Used for both EFR Outlet Material Hose and EFR Recirculation Hose applications. For recirculation hose, only to be used with Voltex Dynamic Mix Valve, do not use with MD2 dispense valve or Rams.
Reference Manuals
GRACO 17K263 - (3.0 M) Stainless Steel Braided PTFE Ambient Hose, 401" x 10 ft, No. 8 (0./ 10.2 mm ID), 3000 PSI
10FT - 1/2 in PTFE Core SST Braided Hose - 3000 PSI (21 Mpa,207 bar) WP
Graco ambient temperature hoses bring reliable performance to Sealant and Adhesive dispensing installations. Whether your material is moisture sensitive, corrosive, or inert, Graco hoses have the materials of construction and build-quality to hold up to all your application’s needs.
Additional Specifications
Specifications
| Hose Diameter (in) | 0.401 |
| Hose Diameter (mm) | 10.2 |
| Hose Heating Type | Ambient |
| Hose Length (ft) | 10 |
| Inside Diameter (in) | 0.401 |
| JIC Size | JIC 08 |
| Material | PTFE Lined Stainless Steel Braid |
| Maximum Temperature (°F) | 212 |
| Maximum Working Pressure (MPa) | 27.6 |
| Maximum Working Pressure (psi) | 4000 |
| Thread Gender | Female |
| Thread Size | 3/4-16 |
| Thread Type | 37 degree JIC Swivel |
| Type | Hose |
| Voltage (V) | N/A |
Compatible Equipment
Related Parts
Used for both EFR Outlet Material Hose and EFR Recirculation Hose applications. For recirculation hose, only to be used with Voltex Dynamic Mix Valve, do not use with MD2 dispense valve or Rams.
Reference Manuals
