Item #: 17K265
Price: $1,662.86
Call 888-654-8898
Need this Product for a Specific Application?
Use our handy finder to find the exact model for your needs.

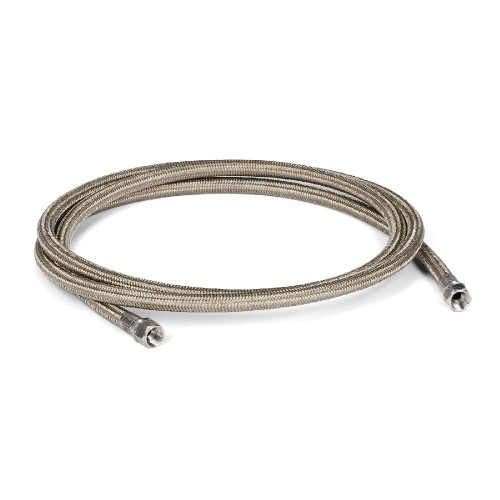

GRACO 17K265 - (1.8 M) Stainless Steel Braided PTFE Ambient Hose, 495" x 6 ft, No. 10 (0./ 12.6 mm ID), 4000 PSI
6 ft. ambient temperature hose designed for spray finishing applications requiring flexible, durable fluid transfer with consistent performance
Graco ambient temperature hoses bring reliable performance to Sealant and Adhesive dispensing installations. Whether your material is moisture sensitive, corrosive, or inert, Graco hoses have the materials of construction and build-quality to hold up to all your application’s needs.
Additional Specifications
Specifications
| Hose Diameter (in) | 0.495 |
| Hose Diameter (mm) | 12.6 |
| Hose Heating Type | Ambient |
| Hose Length (ft) | 6 |
| Inside Diameter (in) | 0.495 |
| JIC Size | JIC 10 |
| Material | PTFE Lined Stainless Steel Braid |
| Maximum Temperature (°F) | 212 |
| Maximum Working Pressure (MPa) | 27.6 |
| Maximum Working Pressure (psi) | 4000 |
| Thread Gender | Female |
| Thread Size | 7/8 -14 |
| Thread Type | 37 degree JIC Swivel |
| Type | Hose |
| Voltage (V) | N/A |
Features
Applications
Related Parts
Part of a comprehensive hose family with various lengths and connection sizes, all rated for ambient temperature use Part of a hose series with various JIC dash sizes and lengths. Working pressure temperature rating applies to ambient heat applications. Part of hose options family with various lengths and JIC dash sizes. Working pressure and temperature ratings shown for ambient temperature hoses.
