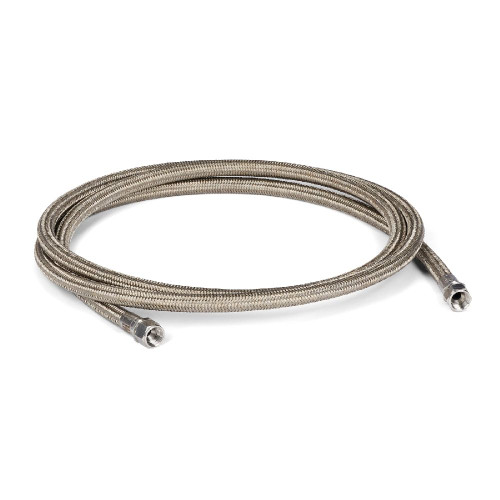

GRACO 17K266 - (3.0 M) Stainless Steel Braided PTFE Ambient Hose, 495" x 10 ft, No. 10 (0./ 12.6 mm ID), 4000 PSI
10-foot ambient temperature hose with heated capability, featuring durable construction for reliable fluid transfer in spray finishing and coating applications
Graco ambient temperature hoses bring reliable performance to Sealant and Adhesive dispensing installations. Whether your material is moisture sensitive, corrosive, or inert, Graco hoses have the materials of construction and build-quality to hold up to all your application’s needs.
Additional Specifications
Specifications
| Hose Diameter (in) | 0.495 |
| Hose Diameter (mm) | 12.6 |
| Hose Heating Type | Ambient |
| Hose Length (ft) | 10 |
| Inside Diameter (in) | 0.495 |
| JIC Size | JIC 10 |
| Material | PTFE Lined Stainless Steel Braid |
| Maximum Temperature (°F) | 212 |
| Maximum Working Pressure (MPa) | 27.6 |
| Maximum Working Pressure (psi) | 4000 |
| Thread Gender | Female |
| Thread Size | 7/8 -14 |
| Thread Type | 37 degree JIC Swivel |
| Type | Hose |
| Voltage (V) | N/A |
Features
Applications
Related Parts
Part of GRACO's comprehensive hose system offering various lengths from 183cm to 762cm with both ambient and heated options Part of a family of hoses with different JIC dash sizes and lengths. Working pressure rating applies to Check-Mate 200CS/CM lower size system. Part of hose options series with JIC Dash Size -10 (5/8 in, 15.9 mm) in various lengths from 6 ft to 25 ft
