Item #: 17K269
Price: $1,948.57
Call 888-654-8898
Need this Product for a Specific Application?
Use our handy finder to find the exact model for your needs.

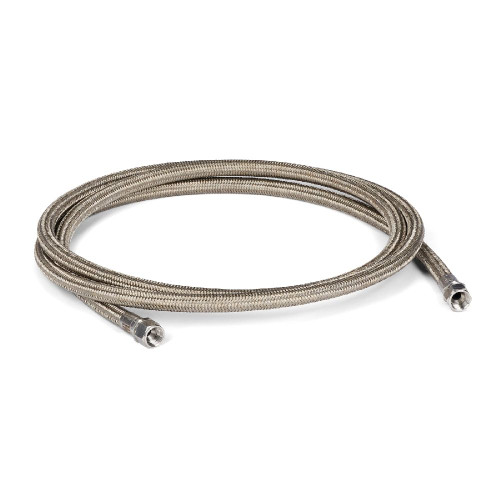

GRACO 17K269 - (7.6 M) Stainless Steel Braided PTFE Ambient Hose, 495" x 25 ft, No. 10 (0./ 12.6 mm ID), 4000 PSI
25 foot (762 cm) heated ambient hose with #10 connection, designed for fluid transfer applications requiring heated hose capabilities
Graco ambient temperature hoses bring reliable performance to Sealant and Adhesive dispensing installations. Whether your material is moisture sensitive, corrosive, or inert, Graco hoses have the materials of construction and build-quality to hold up to all your application’s needs.
Additional Specifications
Specifications
| Hose Diameter (in) | 0.495 |
| Hose Diameter (mm) | 12.6 |
| Hose Heating Type | Ambient |
| Hose Length (ft) | 25 |
| Inside Diameter (in) | 0.495 |
| JIC Size | JIC 10 |
| Material | PTFE Lined Stainless Steel Braid |
| Maximum Temperature (°F) | 212 |
| Maximum Working Pressure (MPa) | 27.6 |
| Maximum Working Pressure (psi) | 4000 |
| Thread Gender | Female |
| Thread Size | 7/8 -14 |
| Thread Type | 37 degree JIC Swivel |
| Type | Hose |
| Voltage (V) | N/A |
Features
Applications
Related Parts
Part of a comprehensive hose family with various lengths and connection sizes available Part of a hose series with different lengths (6 ft, 10 ft, 15 ft, 20 ft, 25 ft) and different JIC dash sizes (-10, -12, -16). Working pressure temperature rating applies to ambient conditions. Part of hose options series with various JIC dash sizes and lengths. This is a 25 ft ambient temperature rated hose with -10 JIC dash size (5/8 in, 15.9 mm ID).
Reference Manuals
GRACO 17K269 - (7.6 M) Stainless Steel Braided PTFE Ambient Hose, 495" x 25 ft, No. 10 (0./ 12.6 mm ID), 4000 PSI
25 foot (762 cm) heated ambient hose with #10 connection, designed for fluid transfer applications requiring heated hose capabilities
Graco ambient temperature hoses bring reliable performance to Sealant and Adhesive dispensing installations. Whether your material is moisture sensitive, corrosive, or inert, Graco hoses have the materials of construction and build-quality to hold up to all your application’s needs.
Additional Specifications
Specifications
| Hose Diameter (in) | 0.495 |
| Hose Diameter (mm) | 12.6 |
| Hose Heating Type | Ambient |
| Hose Length (ft) | 25 |
| Inside Diameter (in) | 0.495 |
| JIC Size | JIC 10 |
| Material | PTFE Lined Stainless Steel Braid |
| Maximum Temperature (°F) | 212 |
| Maximum Working Pressure (MPa) | 27.6 |
| Maximum Working Pressure (psi) | 4000 |
| Thread Gender | Female |
| Thread Size | 7/8 -14 |
| Thread Type | 37 degree JIC Swivel |
| Type | Hose |
| Voltage (V) | N/A |
Features
Applications
Related Parts
Part of a comprehensive hose family with various lengths and connection sizes available Part of a hose series with different lengths (6 ft, 10 ft, 15 ft, 20 ft, 25 ft) and different JIC dash sizes (-10, -12, -16). Working pressure temperature rating applies to ambient conditions. Part of hose options series with various JIC dash sizes and lengths. This is a 25 ft ambient temperature rated hose with -10 JIC dash size (5/8 in, 15.9 mm ID).
Reference Manuals
