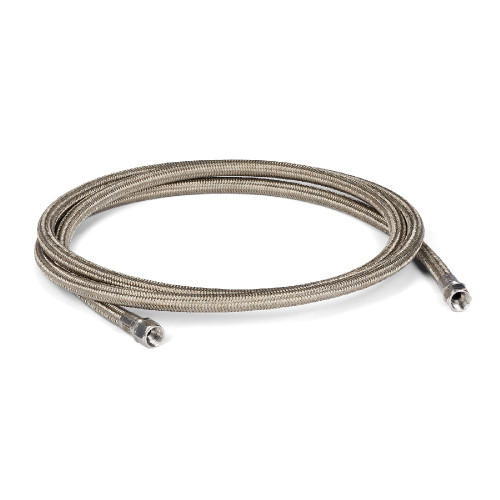

GRACO 17K272 - (1.8 M) Stainless Steel Braided PTFE Ambient Hose, 617" x 6 ft, No. 12 (0./ 15.7 mm ID), 4000 PSI

6 ft. (183 cm) stainless steel braided PTFE ambient temperature hose with 12 gauge (0.617" / 15.7 mm ID) for professional spray applications requiring chemical resistance and durability

Graco ambient temperature hoses bring reliable performance to Sealant and Adhesive dispensing installations. Whether your material is moisture sensitive, corrosive, or inert, Graco hoses have the materials of construction and build-quality to hold up to all your application’s needs.

Additional Specifications

• Length: 6 ft. (183 cm)
• Max Working Pressure: 4000 PSI (28 MPa, 276 bar) at -65° F - 400° F (101° C - 204° C)
• Material: Stainless steel braided PTFE
• Jic Dash Size: -12 (3/4 in, 19.0 mm)
• Working Pressure Temperature Rating: 4000 PSI (28 MPa, 276 bar) at -65° F - 212° F (-54° C - 100° C)

Specifications

Features

• Stainless steel braided construction for durability
• PTFE inner liner for chemical resistance
• Ambient temperature rated
• Professional grade construction

Applications

• Spray finishing applications
• Chemical transfer
• Professional coating operations
• Industrial spray systems

Compatible Equipment

• Equipment requiring 12 gauge hose connections
• Professional spray guns and pumps

Related Parts

• 17K269 - (7.6 M) Stainless Steel Braided PTFE Ambient Hose, 495" x 25 ft, No. 10 (0./ 12.6 mm ID), 4000 PSI
• 17K273 - (3.0 M) Stainless Steel Braided PTFE Ambient Hose, 617" x 10 ft, No. 12 (0./ 15.7 mm ID), 4000 PSI
• 17K274 - (4.6 M) Stainless Steel Braided PTFE Ambient Hose, 617" x 15 ft, No. 12 (0./ 15.7 mm ID), 4000 PSI
• 17K275 - 20 ft. Stainless Steel Braided PTFE Ambient Hose, 4000 PSI
• 17K276 - (7.6 M) Stainless Steel Braided PTFE Ambient Hose, 617" x 25 ft, No. 12 (0./ 15.7 mm ID), 4000 PSI
• 17K277 - Stainless Steel Braided PTFE Ambient Hose, 867" x 6 ft, 0., 4000 PSI, 16
• 17K278 - (3.0 M) Stainless Steel Braided PTFE Ambient Hose, 867" x 10 ft, No. 16 (0./ 22.0 mm ID), 4000 PSI
• 17K279 - (4.6 M) Stainless Steel Braided PTFE Ambient Hose, 867" x 15 ft, No. 16 (0./ 22.0 mm ID), 4000 PSI
• 17K280 - Stainless Steel Braided PTFE Ambient Hose, 867" x 20 ft, 0., 4000 PSI
• 17K265 - (1.8 M) Stainless Steel Braided PTFE Ambient Hose, 495" x 6 ft, No. 10 (0./ 12.6 mm ID), 4000 PSI

Part of comprehensive hose family with various lengths and gauge options for different spray applications Part of a series of hoses with the same JIC dash size (-12) and hose I.D. (0.617 in.) but different lengths (6 ft, 10 ft, 15 ft, 20 ft, 25 ft). Working pressure temperature rating applies to ambient heat conditions. This is a hose option with JIC Dash Size -12, ambient temperature rating, and 6 ft length. Part of a series of hoses with different lengths and JIC dash sizes.

Reference Manuals

• 300789 (Page 6) E-FLO iQ
• 333586 (Page 7) E-Flo IQ Supply Systems, Installation
• 333587 (Page 6) E-Flo iQ Supply System
