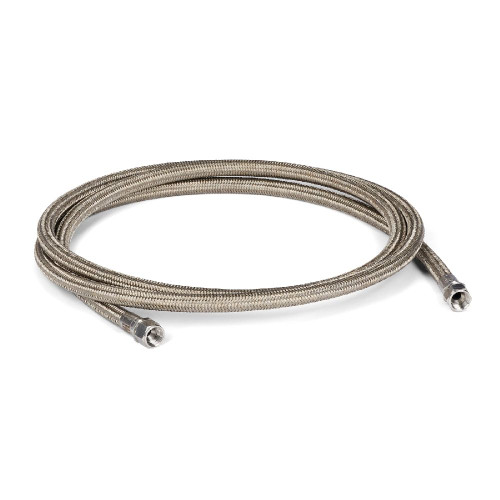

GRACO 17K273 - (3.0 M) Stainless Steel Braided PTFE Ambient Hose, 617" x 10 ft, No. 12 (0./ 15.7 mm ID), 4000 PSI
Professional-grade ambient temperature hose designed for reliable fluid transfer applications requiring flexibility and durability in demanding industrial environments
Graco ambient temperature hoses bring reliable performance to Sealant and Adhesive dispensing installations. Whether your material is moisture sensitive, corrosive, or inert, Graco hoses have the materials of construction and build-quality to hold up to all your application’s needs.
Additional Specifications
Specifications
| Hose Diameter (in) | 0.617 |
| Hose Diameter (mm) | 15.7 |
| Hose Heating Type | Ambient |
| Hose Length (ft) | 10 |
| Inside Diameter (in) | 0.617 |
| JIC Size | JIC 12 |
| Material | PTFE Lined Stainless Steel Braid |
| Maximum Temperature (°F) | 212 |
| Maximum Working Pressure (MPa) | 27.6 |
| Maximum Working Pressure (psi) | 4000 |
| Thread Gender | Female |
| Thread Size | 1 1/16-12 |
| Thread Type | 37 degree JIC Swivel |
| Type | Hose |
| Voltage (V) | N/A |
Features
Applications
Compatible Equipment
Related Parts
Part of a series of ambient temperature hoses available in various lengths and connection sizes. All hoses in this series feature heated construction for consistent performance. Part of dispense system pressure hose family with JIC dash size -12 Only for use with Rams. Do not use with Day Tanks or Recirculation.
