Item #: 17K276
Price: $2,280.00
Call 888-654-8898
Need this Product for a Specific Application?
Use our handy finder to find the exact model for your needs.

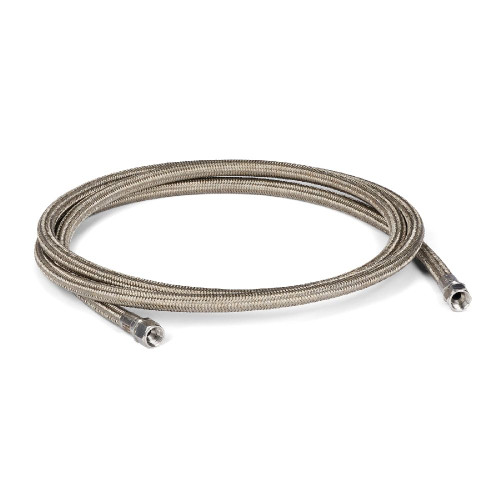

GRACO 17K276 - (7.6 M) Stainless Steel Braided PTFE Ambient Hose, 617" x 25 ft, No. 12 (0./ 15.7 mm ID), 4000 PSI
Ambient temperature hose designed for fluid transfer applications requiring flexibility and durability in standard operating conditions
Graco ambient temperature hoses bring reliable performance to Sealant and Adhesive dispensing installations. Whether your material is moisture sensitive, corrosive, or inert, Graco hoses have the materials of construction and build-quality to hold up to all your application’s needs.
Additional Specifications
Specifications
| Hose Diameter (in) | 0.617 |
| Hose Diameter (mm) | 15.7 |
| Hose Heating Type | Ambient |
| Hose Length (ft) | 25 |
| Inside Diameter (in) | 0.617 |
| JIC Size | JIC 12 |
| Material | PTFE Lined Stainless Steel Braid |
| Maximum Temperature (°F) | 212 |
| Maximum Working Pressure (MPa) | 27.6 |
| Maximum Working Pressure (psi) | 4000 |
| Thread Gender | Female |
| Thread Size | 1 1/16-12 |
| Thread Type | 37 degree JIC Swivel |
| Type | Hose |
| Voltage (V) | N/A |
Features
Applications
Related Parts
Part of a comprehensive hose family with various lengths and specifications available for different application requirements Part of a hose family with JIC dash size -12. Working pressure rating applies to dispensing system where dynamic pressure will not reach the rated working (stall) pressure due to system design factors. Part of the hose options family with JIC Dash Size -12 (3/4 in, 19.0 mm) in various lengths from 6 ft to 25 ft
Reference Manuals
GRACO 17K276 - (7.6 M) Stainless Steel Braided PTFE Ambient Hose, 617" x 25 ft, No. 12 (0./ 15.7 mm ID), 4000 PSI
Ambient temperature hose designed for fluid transfer applications requiring flexibility and durability in standard operating conditions
Graco ambient temperature hoses bring reliable performance to Sealant and Adhesive dispensing installations. Whether your material is moisture sensitive, corrosive, or inert, Graco hoses have the materials of construction and build-quality to hold up to all your application’s needs.
Additional Specifications
Specifications
| Hose Diameter (in) | 0.617 |
| Hose Diameter (mm) | 15.7 |
| Hose Heating Type | Ambient |
| Hose Length (ft) | 25 |
| Inside Diameter (in) | 0.617 |
| JIC Size | JIC 12 |
| Material | PTFE Lined Stainless Steel Braid |
| Maximum Temperature (°F) | 212 |
| Maximum Working Pressure (MPa) | 27.6 |
| Maximum Working Pressure (psi) | 4000 |
| Thread Gender | Female |
| Thread Size | 1 1/16-12 |
| Thread Type | 37 degree JIC Swivel |
| Type | Hose |
| Voltage (V) | N/A |
Features
Applications
Related Parts
Part of a comprehensive hose family with various lengths and specifications available for different application requirements Part of a hose family with JIC dash size -12. Working pressure rating applies to dispensing system where dynamic pressure will not reach the rated working (stall) pressure due to system design factors. Part of the hose options family with JIC Dash Size -12 (3/4 in, 19.0 mm) in various lengths from 6 ft to 25 ft
Reference Manuals
